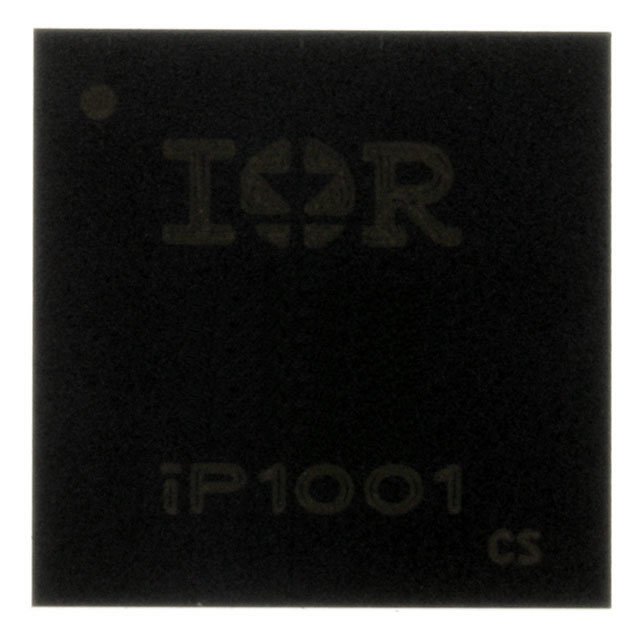

MFG:International Rectifier Category:Integrated Circuits (ICs) Package Cooled:QFP D/C:0709/12+
IP100, IP1001, IP1001CS Datasheet download
Category: Integrated Circuits (ICs)
MFG: International Rectifier
Package Cooled: QFP
D/C: 0709/12+
Description: IC PWR BLOCK SGL PHS 20A 256-BGA
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download
Datasheet: IP1001
File Size: 519701 KB
Manufacturer: IRF [International Rectifier]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: IP1001
File Size: 519701 KB
Manufacturer: IRF [International Rectifier]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: IP1001
File Size: 519701 KB
Manufacturer: IRF [International Rectifier]
Download : Click here to Download
| Technical/Catalog Information | IP1001 |
| Vendor | International Rectifier |
| Category | Integrated Circuits (ICs) |
| Type | Step-Down (Buck) |
| Number of Outputs | 1 |
| Voltage - Input | 3.3 ~ 12 V |
| Voltage - Output | 0.93 ~ 2 V |
| Current - Output | 20A |
| Power - Output | 3.1W |
| Package / Case | 256-BGA (218 bumps) |
| Packaging | Bulk |
| Internal Switch(s) | Yes |
| Synchronous | Yes |
| Rds (On) | - |
| Operating Temperature | -40°C ~ 125°C |
| Frequency - Switching | 200kHz, 300kHz |
| Lead Free Status | Contains Lead |
| RoHS Status | RoHS Non-Compliant |
| Other Names | IP1001 IP1001 |
The iP1001 is a fully optimized solution for high current synchronous buck applications requiring up to 20A. The iP1001 is optimized for single-phase applications, and includes a full function fast transient response PWM control, with an optimized power semiconductor chip-set and associated passives, achieving benchmark power density. Very few external components are required, including output inductor, input & output capacitors. Further range of operation to 3.3Vin can be achieved with the addition of a simple external boost circuit, and operation up to 3.3Vout can be achieved with a simple external voltage divider.
iPOWIR technology offers designers an innovative board space-saving solution for applications requiring high power densities. iPOWIR technology eases design for applications where component integration offers benefits in performance and functionality. iPOWIR technology solutions are also optimized internally for layout, heat transfer and component selection.
| Parameter | Symbol | Min | Typ | Max | Units | Conditions |
| VIN to PGND | -0.3 | - | 16.0 | V | ||
| VDD to PGND | -0.3 | - | 6.0 | |||
| VFS | -0.3 | - | VDD+0.3 | |||
| VF | -0.3 | - | VDD+0.3 | |||
| D0-D4 | -0.3 | - | VDD+0.3 | |||
| PGOOD to PGND | -0.3 | - | 6.0 | |||
| ENABLE to PGND | -0.3 | - | 6.0 | |||
| ILIM | -0.3 | - | VDD+0.3 | |||
| FREQ | -0.3 | - | VDD+0.3 | |||
| Output RMS Current | - | - | 20 | A | ||
| Block Temperature | TBLK | -40 | - | 125 | °C |
