IP117R/883, IP117T, IP1203 Datasheet download
Category: Integrated Circuits (ICs)
MFG: International Rectifier
Package Cooled: 09+
D/C: 1000
Description: IC SYNCHRONOUS BUCK POWER BLOCK
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download
Datasheet: IP1001
File Size: 519701 KB
Manufacturer: IRF [International Rectifier]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: IP1001
File Size: 519701 KB
Manufacturer: IRF [International Rectifier]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: IP1203
File Size: 651052 KB
Manufacturer: IRF
Download : Click here to Download
| Technical/Catalog Information | IP1203 |
| Vendor | International Rectifier |
| Category | Integrated Circuits (ICs) |
| Type | Step-Down (Buck) |
| Number of Outputs | 1 |
| Voltage - Input | 5.5 ~ 13.2 V |
| Voltage - Output | 0.8 ~ 8 V |
| Current - Output | 15A |
| Power - Output | 3.75W |
| Package / Case | 24-LGA |
| Packaging | Bulk |
| Internal Switch(s) | Yes |
| Synchronous | Yes |
| Rds (On) | - |
| Operating Temperature | -10°C ~ 125°C |
| Frequency - Switching | 200kHz ~ 400kHz |
| Drawing Number | * |
| Lead Free Status | Contains Lead |
| RoHS Status | RoHS Non-Compliant |
| Other Names | IP1203 IP1203 |

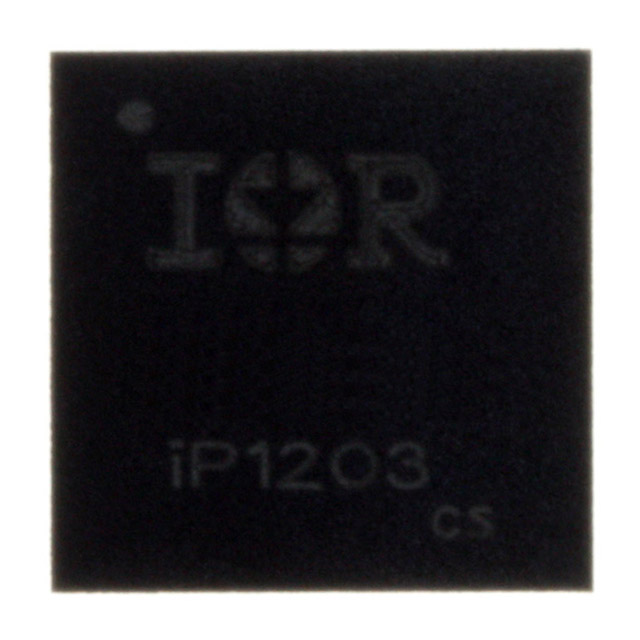

The iP1203 is a fully optimized solution for medium current synchronous buck applications up to 15 A.It includes full function PWM control,with optimized power semiconductor chipsets and associated passives, achieving high power density.Very few external components are required to creat a complete synchronous buck power supply.
Features of the iP1203 are:(1)5.5V to 13.2V input voltage; (2)0.8V to 8V output voltage; (3)15A maximum load capability; (4)200-400kHz nominal switching frequency; (5)over current hiccup; (6)external synchronization capable; (7)overvoltage protection; (8)over temperature protection; (9)internal features minimize layout sensitivity.
The absolute maximum ratings of the iP1203 can be summarized as:(1): VIN is -0.3 V min and 15 V max; (2): feedback(FB ) is -0.3 V min and 6 V max; (3): output overvoltage sense(FBS) is -0.3 V min and 6 V max; (4): PGOOD is -0.3V min and 15 V max; (5): soft start(SS) is -0.3 V min and 6 V max; (6): SYNC is -0.3 V min and 6 V max; (7): output rms current(IoutVSW) is 15 A max; (8): block temperature(TBLK) is -10°C min and 125 °C.
