IL514E, IL515E, IL516-3E

Table of contents:
Info of IL514E
Info of IL515E
Info of IL516-3E

IL514E, IL515E, IL516-3E Selling Leads, Datasheet

MFG:NVE Corp/Isolation Products Category:Isolators Package Cooled:SOIC D/C:092154

IL514E, IL515E, IL516-3E Datasheet download

Five Points

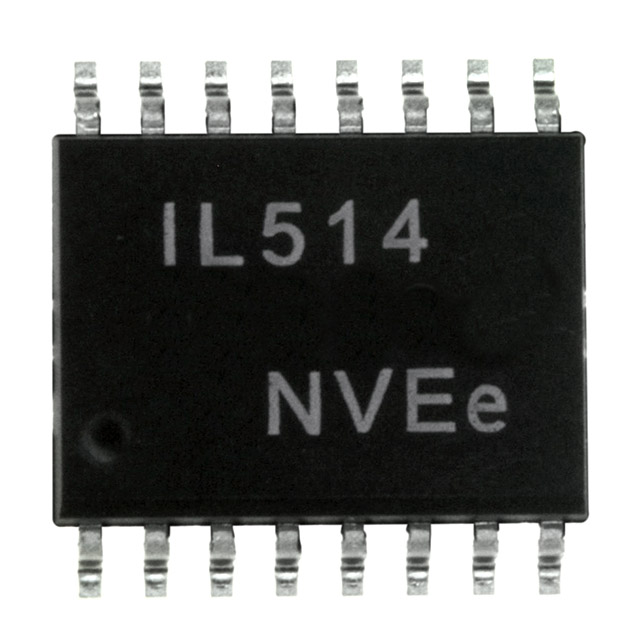

Part Number: IL514E

Category: Isolators

MFG: NVE Corp/Isolation Products

Package Cooled: SOIC

D/C: 092154

Description: IC DGTL ISOL 4CH 2MBPS 16-SOIC

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

IL514E Parameters

Technical/Catalog Information	IL514E
Vendor	NVE Corp/Isolation Products
Category	Isolators
Number of Channels	3
Package / Case	16-SOIC (7.5mm Width)
Propagation Delay	25ns
Data Rate	2Mbs
Configuration	2/1
Output Type	CMOS
Isolation Rating	2.5kVrms
Packaging	Tube
Voltage - Supply	3 V ~ 5.5 V
Operating Temperature	-40°C ~ 85°C
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	IL514E IL514E 390 1119 5 ND 39011195ND 390-1119-5

IL515E Parameters

Technical/Catalog Information	IL515E
Vendor	NVE Corp/Isolation Products
Category	Isolators
Number of Channels	4
Package / Case	16-SOIC (7.5mm Width)
Propagation Delay	25ns
Data Rate	2Mbs
Configuration	4/0
Output Type	CMOS
Isolation Rating	2.5kVrms
Packaging	Tube
Voltage - Supply	3 V ~ 5.5 V
Operating Temperature	-40°C ~ 85°C
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	IL515E IL515E 390 1120 5 ND 39011205ND 390-1120-5
