IL511-1E, IL511-3E, IL514-3E

Table of contents:
Info of IL511-1E
Info of IL511-3E
Info of IL514-3E

IL511-1E, IL511-3E, IL514-3E Selling Leads, Datasheet

MFG:NVE Corp/Isolation Products Category:Isolators Package Cooled:MSOP D/C:08+

IL511-1E, IL511-3E, IL514-3E Datasheet download

Five Points

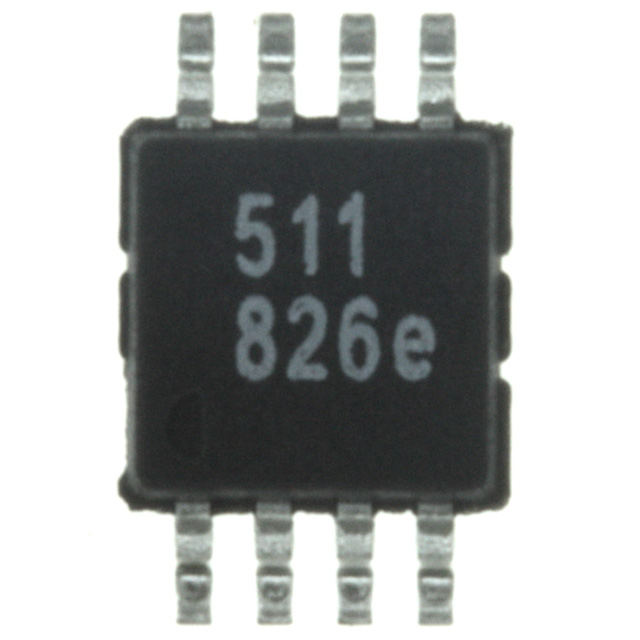

Part Number: IL511-1E

Category: Isolators

MFG: NVE Corp/Isolation Products

Package Cooled: MSOP

D/C: 08+

Description: IC DGTL ISOL 2CH 2MBPS 8-SOIC

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

IL511-1E Parameters

Technical/Catalog Information	IL511-1E
Vendor	NVE Corp/Isolation Products
Category	Isolators
Number of Channels	2
Package / Case	8-MSOP, Micro8?, 8-uMAX, 8-uSOP,
Propagation Delay	25ns
Data Rate	2Mbs
Configuration	2/0
Output Type	CMOS
Isolation Rating	2.5kVrms
Packaging	Tube
Voltage - Supply	3 V ~ 5.5 V
Operating Temperature	-40°C ~ 85°C
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	IL511 1E IL5111E 390 1123 5 ND 39011235ND 390-1123-5

IL511-3E Parameters

Technical/Catalog Information	IL511-3E
Vendor	NVE Corp/Isolation Products
Category	Isolators
Number of Channels	2
Package / Case	8-SOIC (3.9mm Width)
Propagation Delay	25ns
Data Rate	2Mbs
Configuration	2/0
Output Type	CMOS
Isolation Rating	2.5kVrms
Packaging	Tube
Voltage - Supply	3 V ~ 5.5 V
Operating Temperature	-40°C ~ 85°C
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	IL511 3E IL5113E 390 1118 5 ND 39011185ND 390-1118-5
