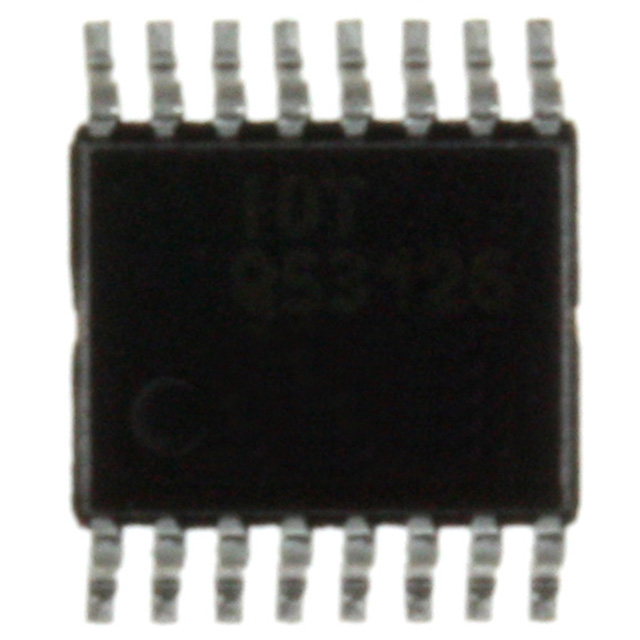

The QS3126 provides a set of four high-speed CMOS switches connect-ing inputs to outputs. The low ON resistance of the QS3126 allows inputs to be connected to outputs without propagation delay and without generating additional ground bounce noise. Individual active high enables (OE) are used to turn the switches on. The QS3126 is ideal for signal and control switching since the device adds no noise, ground bounce, propagation delay, or significant power consumption to the system.
QuickSwitch devices provide an order of magnitude faster speed than conventional logic devices. The QS3126 is characterized for operation at -40°C to +85°C.
IDTQS3126 Maximum Ratings
Symbol
Description
Max
Unit
VTERM(2)
Supply Voltage to Ground
0.5 to +7
V
VTERM(3)
DC Switch Voltage VS
0.5 to +7
V
VTERM(3)
DC Input Voltage VIN
0.5 to +7
V
VAC
AC Input Voltage (pulse width 20ns)
3
V
IOUT
DC Output Current
120
mA
PMAX
Maximum Power Dissipation (TA = 85°C)
0.5
W
TSTG
Storage Temperature
65 to +150
°C
IDTQS3126 Features
* Enhanced N channel FET with no inherent diode to Vcc * Bidirectional switches connect inputs to outputs * Pin compatible with the 74'126 function * Zero propagation delay, zero ground bounce * Undershoot clamp diodes on all switch and control inputs * Available in QSOP and SOIC packages
IDTQS3126 Typical Application
* Active high enabling * Hot-swapping, hot-docking * Voltage translation (5V to 3.3V) * Power conservation * Capacitance reduction and isolation (mass storage, work stations) * Logic replacement (data processing) * Clock gating * Bus isolation
