HTM2500, HTM-450, HTM4953

HTM2500, HTM-450, HTM4953 Selling Leads, Datasheet

MFG:Measurement Specialties Inc/Humirel  Category:Sensors, Transducers

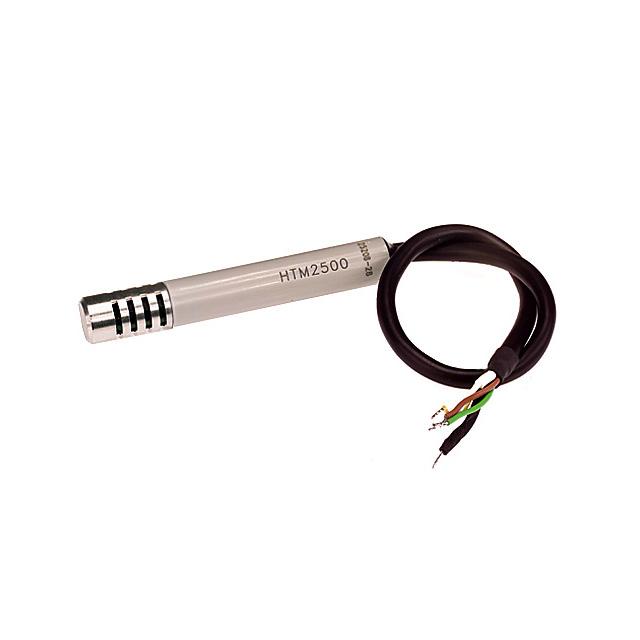

HTM2500 Picture

HTM2500, HTM-450, HTM4953 Datasheet download

Five Points

Part Number: HTM2500

Category: Sensors, Transducers

MFG: Measurement Specialties Inc/Humirel

Package Cooled:

D/C:

Description: SENSOR RH CAP NTC THERM VOUT






Urgent Purchase
Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.


 How to buy ?       How long will receive a response.

Top Sellers:

TOP

HTM2500 Suppliers

More HTM2500 Suppliers

Select All

  • HTM226LF

  • D/C: 09+& Qty: 600 Note: STOCK  Adddate: 2024-11-27
  • Inquire Now
  • DCXF   China
    Contact: Ms.ZHAO   MSN:zhaoyan2004@hotmail.com
    Tel: 0086-010-82533383
    Fax: 0086-010-82533393
    (20)

About

PDF/DataSheet Download

Datasheet:

File Size: KB

Manufacturer:

Download : Click here to Download

Related PDF Download

Related Part Number

HTM-450 Suppliers

More HTM-450 Suppliers

Select All

  • HTM226LF

  • D/C: 09+& Qty: 600 Note: STOCK  Adddate: 2024-11-27
  • Inquire Now
  • DCXF   China
    Contact: Ms.ZHAO   MSN:zhaoyan2004@hotmail.com
    Tel: 0086-010-82533383
    Fax: 0086-010-82533393
    (20)

About

PDF/DataSheet Download

Datasheet:

File Size: KB

Manufacturer:

Download : Click here to Download

Related PDF Download

Related Part Number

HTM4953 Suppliers

More HTM4953 Suppliers

Select All

  • HTM226LF

  • D/C: 09+& Qty: 600 Note: STOCK  Adddate: 2024-11-27
  • Inquire Now
  • DCXF   China
    Contact: Ms.ZHAO   MSN:zhaoyan2004@hotmail.com
    Tel: 0086-010-82533383
    Fax: 0086-010-82533393
    (20)

About

PDF/DataSheet Download

Datasheet:

File Size: KB

Manufacturer:

Download : Click here to Download

Related PDF Download

Related Part Number

HTM2500 Parameters

Technical/Catalog InformationHTM2500
VendorMeasurement Specialties Inc/Humirel
CategorySensors, Transducers
Sensor TypeTemperature and RH Module with HTS2020SMD Sensor (NTC Thermistor)
Voltage - Supply5V
Capacitance-
Response Time5s (33 ~ 76% RH, static @ 63%)
Output2.48V @ 55% RH
Operating Temperature-30°C ~ 70°C
Sensitivity+25mV/%RH
Accuracy±3% @ 10 ~ 95% RH @ 23°C
Humidity Range1 ~ 99% RH
RoHS StatusRoHS Non-Compliant
Other Names HTM2500
HTM2500

HTM2500 General Description

Based on the rugged HTS2010 humidity / temperature sensor , HTM2500 is a dedicated humidity and temperature transducer designed for OEM applications where a reliable and accurate measurement is needed. Direct interface with a micro-controller is made possible with the module's humidity linear voltage output.

HTM2500 Maximum Ratings

Ratings Symbol Value Unit
Storage Temperature Tstg -40 to 85
Supply Voltage (peak) Vs 12 Vdc
Humidity Operating Range RH 0 to 100 % RH
Temperature Operating Range Ta -30 to 70
Peak conditions: less than 10% of the operational time.

HTM2500 Features

·Small size
·Not affected by water immersion
·Full interchangeability
·High reliability and long term stability
·Typical 1 to 4 Volt DC output for 0 to 100% RH at 5 V DC supply
·Humidity calibrated within +/- 2% RH @ 55% RH
·Temperature measurement through NTC 10kohm +/- 3% direct output
·Ratiometric to voltage supply
·Suitable for 3 to 10 Volts supply voltage
