Position: Home  > All Categories> Integrated Circuits (ICs) > HTM2500

HTM2500

Industrial Humidity Sensors -40 to 105 Oper Temp 12 VDC Supply Volt

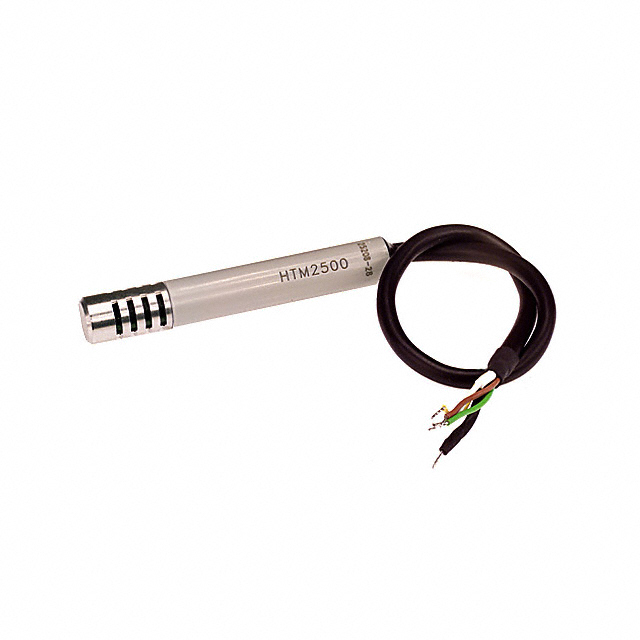

product image

HTM2500 Picture
See larger image
SeekIC No. : 002671850 Detail

HTM2500: Industrial Humidity Sensors -40 to 105 Oper Temp 12 VDC Supply Volt

HTM2500 Data Sheet

floor Price/Ceiling Price

US $ 25.64~29.92 / Piece | Get Latest Price
Part Number:
HTM2500
Mfg:
Measurement Specialties Sensors
Supply Ability:
5000

Price Break

  • Qty
  • 0~100
  • 100~260
  • Unit Price
  • $29.92
  • $25.64
  • Processing time
  • 15 Days
  • 15 Days
View more price & deliveries
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

RH Range : 0 % to 100 % RH Accuracy : +/- 3 % to +/- 5 %
Supply Voltage : 12 VDC Supply Current : 0.4 mA
Temperature Range : - 30 C to + 70 C

Description

RH Range : 0 % to 100 %
Supply Current : 0.4 mA
RH Accuracy : +/- 3 % to +/- 5 %
Supply Voltage : 12 VDC
Temperature Range : - 30 C to + 70 C


Features:

·Small size
·Not affected by water immersion
·Full interchangeability
·High reliability and long term stability
·Typical 1 to 4 Volt DC output for 0 to 100% RH at 5 V DC supply
·Humidity calibrated within +/- 2% RH @ 55% RH
·Temperature measurement through NTC 10kohm +/- 3% direct output
·Ratiometric to voltage supply
·Suitable for 3 to 10 Volts supply voltage


Specifications

Ratings Symbol Value Unit
Storage Temperature Tstg -40 to 85
Supply Voltage (peak) Vs 12 Vdc
Humidity Operating Range RH 0 to 100 % RH
Temperature Operating Range Ta -30 to 70
Peak conditions: less than 10% of the operational time.


Description

Based on the rugged HTS2010 humidity / temperature sensor , HTM2500 is a dedicated humidity and temperature transducer designed for OEM applications where a reliable and accurate measurement is needed. Direct interface with a micro-controller is made possible with the module's humidity linear voltage output.




Parameters:

Technical/Catalog InformationHTM2500
VendorMeasurement Specialties Inc/Humirel
CategorySensors, Transducers
Sensor TypeTemperature and RH Module with HTS2020SMD Sensor (NTC Thermistor)
Voltage - Supply5V
Capacitance-
Response Time5s (33 ~ 76% RH, static @ 63%)
Output2.48V @ 55% RH
Operating Temperature-30°C ~ 70°C
Sensitivity+25mV/%RH
Accuracy±3% @ 10 ~ 95% RH @ 23°C
Humidity Range1 ~ 99% RH
RoHS StatusRoHS Non-Compliant
Other Names HTM2500
HTM2500
