HLCPG100CATC, HLCP-H100, HLCP-J100

Table of contents:
Info of HLCPG100CATC
Info of HLCP-H100
Info of HLCP-J100

HLCPG100CATC, HLCP-H100, HLCP-J100 Selling Leads, Datasheet

MFG:Avago Technologies US Inc. Category:Optoelectronics Package Cooled:agi D/C:dc0531

HLCPG100CATC, HLCP-H100, HLCP-J100 Datasheet download

Five Points

Part Number: HLCP-J100

Category: Optoelectronics

MFG: Avago Technologies US Inc.

Package Cooled: agi

D/C: dc0531

Description: LED BAR GRAPH 10SEG RED

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

HLCP-J100 Parameters

Technical/Catalog Information	HLCP-J100
Vendor	Avago Technologies US Inc.
Category	Optoelectronics
Color	Red (x 20)
Mounting Type	Through Hole
Configuration	10 Segment
Voltage Rating	1.6V
Current	15mA
Lens Style/Size	Rectangle, 5.08mm x 1.52mm
Packaging	Bulk
Lens Type	-
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	HLCP J100 HLCPJ100 516 1239 5 ND 51612395ND 516-1239-5

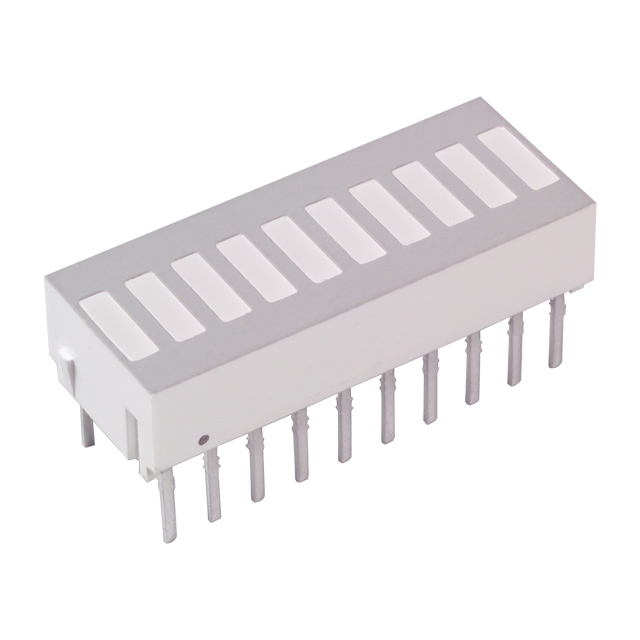

HLCP-J100 General Description

These 10-element LED arrays are designed to display information in easily recognizable bar graph form. The packages are end stackable and therefore capable of displaying long strings of information. Use of these bar graph arrays eliminates the alignment, intensity, and colormatching problems associated with discrete LEDs. The HDSP-4820/4830/4840/4850 and HLCPJ100 each contain LEDs of one color.

The HDSP-4832/4836 are multicolor arrays with High Efficiency Red, Yellow, and High Performance Green LEDs in a single package.

HLCP-J100 Maximum Ratings

Parameter	Red HDSP-4820	AlGaAs Red HLCP-J100	HER HDSP-4830	Yellow HDSP-4840	Green HDSP-4850
Average Power Dissipation per LED (T_A= 25°C)	63 mW	37 mW	87 mW	50 mW	105 mW
Peak Forward Current per LED	150 mA^[1]	45 mA^[2]	90 mA^[3]	60 mA^[3]	90 mA^[3]
DC Forward Current per LED	30 mA^[4]	15 mA^[4]	30 mA^[5]	20 mA^[5]	30 mA^[5]
Operating Temperature Range	-40°C to +85°C	-20°C to +100°C	-40°C to +85°C		20°C to +85°C
Storage Temperature Range	-40°C to +85°C	55°C to +100°C	-40°C to +85°C
Reverse Voltage per LED	3.0 V	5.0 V	3.0 V
Lead Soldering Temperature (1.59 mm (1/16 inch) below seating plane)^[6]	260°C for 3 seconds^[8]

HLCP-J100 Features

• Custom Multicolor Array Capability
• Matched LEDs for Uniform Appearance
• End Stackable
• Package Interlock Ensures Correct Alignment
• Low Profile Package
• Rugged Construction
• Large, Easily Recognizable Segments
• High ON-OFF Contrast, Segment to Segment
• Wide Viewing Angle
• Categorized for Luminous Intensity
• HDSP-4832/4836/4840/4850 Categorized for Dominant Wavelength
• HLCP-J100 Operates at Low Current Typical Intensity of 1.0 mcd at 1 mA Drive Current

HLCP-J100 Typical Application

• Industrial Controls
• Instrumentation
• Office Equipment
• Computer Peripherals
• Consumer Products
