MFG:Intersil Category:Integrated Circuits (ICs) Package Cooled:Original D/C:05+

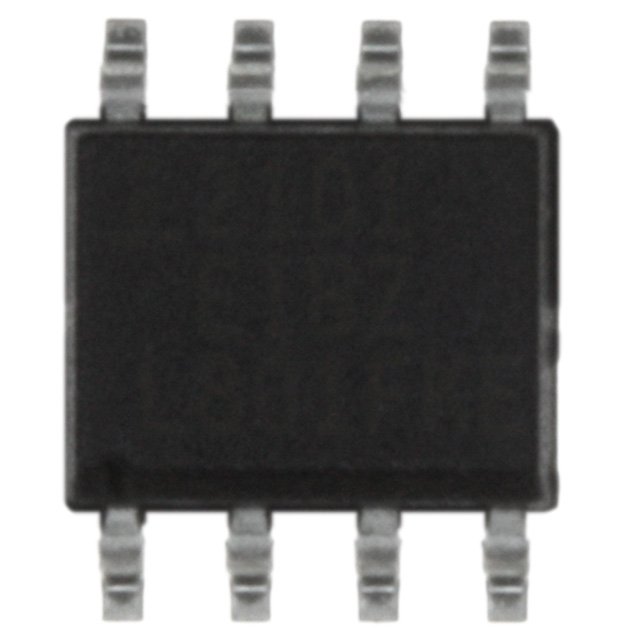

HIP2101EIBZ, HIP2101IB, HIP2101IBT Datasheet download
Category: Integrated Circuits (ICs)
MFG: Intersil
Package Cooled: Original
D/C: 05+
Description: IC DRIVER HALF-BRIDGE 8-SOIC
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download
Datasheet: HIP2101EIBZ
File Size: 423359 KB
Manufacturer: INTERSIL [Intersil Corporation]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: HIP2101IB
File Size: 423359 KB
Manufacturer: INTERSIL [Intersil Corporation]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: HIP0045
File Size: 95776 KB
Manufacturer: INTERSIL [Intersil Corporation]
Download : Click here to Download
| Technical/Catalog Information | HIP2101EIBZ |
| Vendor | Intersil |
| Category | Integrated Circuits (ICs) |
| Configuration | Half Bridge |
| Voltage - Supply | 9 V ~ 14 V |
| Current - Peak | 2A |
| Delay Time | 25ns |
| Package / Case | 8-SOIC (3.9mm Width) Exposed Pad, 8-eSOIC. 8-HSOIC |
| Packaging | Tube |
| Number of Outputs | 2 |
| Input Type | PWM |
| Number of Configurations | 1 |
| Operating Temperature | -40°C ~ 125°C |
| High Side Voltage - Max (Bootstrap) | 100V |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | HIP2101EIBZ HIP2101EIBZ |
| Technical/Catalog Information | HIP2101IB |
| Vendor | Intersil |
| Category | Integrated Circuits (ICs) |
| Configuration | Half Bridge |
| Voltage - Supply | 9 V ~ 14 V |
| Current - Peak | 2A |
| Delay Time | 25ns |
| Package / Case | 8-SOIC (3.9mm Width) |
| Packaging | Tube |
| Number of Outputs | 2 |
| Input Type | PWM |
| Number of Configurations | 1 |
| Operating Temperature | -40°C ~ 125°C |
| High Side Voltage - Max (Bootstrap) | 100V |
| Drawing Number | * |
| Lead Free Status | Contains Lead |
| RoHS Status | RoHS Non-Compliant |
| Other Names | HIP2101IB HIP2101IB |
| Technical/Catalog Information | HIP2101IBT |
| Vendor | Intersil |
| Category | Integrated Circuits (ICs) |
| Configuration | Half Bridge |
| Voltage - Supply | 9 V ~ 14 V |
| Current - Peak | 2A |
| Delay Time | 25ns |
| Package / Case | 8-SOIC (3.9mm Width) |
| Packaging | Tape & Reel (TR) |
| Number of Outputs | 2 |
| Input Type | PWM |
| Number of Configurations | 1 |
| Operating Temperature | -40°C ~ 125°C |
| High Side Voltage - Max (Bootstrap) | 100V |
| Lead Free Status | Contains Lead |
| RoHS Status | RoHS Non-Compliant |
| Other Names | HIP2101IBT HIP2101IBT |
