HIP0050

Features:

• Octal NDMOS Output Drivers in a High Voltage Power BiMOS Process
      - Each Capable of Sinking 300mA
      - Low Idle and Standby Current
• Over-Stress Protection - Each Output:
      - Over-Current Latch Off . . . . . . . . . 300mA Min
      - Over-Voltage Clamp . . . . . . . . . . . . . . . 50V Typ
• Thermal Shutdown with Hysteresis
• Serial Data Input, Parallel Output Power Drive
• Short Circuit Latch Off for Each Output
• Common Enable for Output Drivers and Data Storage Register
• Ambient Operating Temperature Range. . . . . . . . . . . . .-40 to 85
      - Optional 125 Maximum Ambient Operating Temperature Range (Dissipation Limited)


Application

• Automotive and Industrial Systems
• Solenoids, Relays and Lamp Drivers
• Logic and P Controlled Drivers
• Robotic Controls

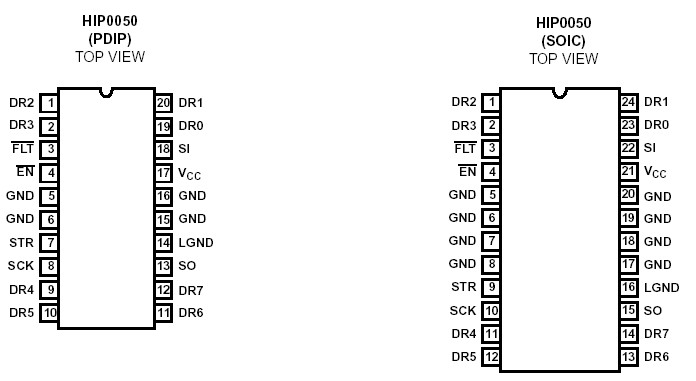

Pinout




Specifications

Output Voltage, V_OUT (Note 1) . . . . . . . . . . . . . .. .  . . . . . -0.3V to V_OC
Input Voltage, V_IN . . . . . . . . . . . . . . . . . . . . . . . .. . -0.3V to VCC +0.3V
Logic Supply Voltage, V_CC . . . . . . . . . . . . . . . . . . . . . . . . . -0.3V to +7V
Max Output Load Current, I_LOAD (Per Output, Note 2) . . . . . . . .. . . ICL
Max. Output Load Current, I_LOAD (All Outputs ON, Note 2) . . . . . . . . 2A
Operating Ambient Temperature Range, T_A . . . . . . . . . .. . -40 to 85
Operating Junction Temperature Range. . . . . . . . . . . . . . -40 to 150
Storage Temperature Range, T_STG . . . . . . . . . . . . . . . . . -55 to 150
Maximum Lead Temperature (Soldering 10s Max). . . . . . . . . . . . . 300


Description

The HIP0050 is a logic controlled, eight channel Octal Low Side Power Driver. As shown in the block diagram, the outputs are controlled via the serial data interface which allows the data to be shifted out, allowing control of other cascaded serial devices. If an Over-Current (OC) short circuit exists in one output, it may be independently shutdown while the other outputs remain in operation.

When a shorted output is latched off, HIP0050 may be turned back on when the next serial input data is latched. A fault flag (FLT) is set to a low status to indicate current-limited shutdown. The outputs are independently latched off when an OC fault is detected. The fault latch is cleared on the next data strobe. Over-Temperature (OT) shutdown is provided with hysteresis to force global shutdown of all output drivers. Shutdown is maintained until the on-chip temperature falls below the minimum hysteresis threshold point.

The HIP0050 is fabricated in a Power BiMOS IC process, and is intended for use in automotive and other applications having a wide range of temperature and electrical stress conditions. HIP0050 is particularly suited for driving lamps, displays, relays, and solenoids in applications where low operating power, high breakdown voltage, and high output current at high temperature is required. Higher current needs can be met by paralleling adjacent output drivers.
