GP2S27TS, GP2S27V6, GP2S28

Table of contents:
Info of GP2S27TS
Info of GP2S27V6
Info of GP2S28

GP2S27TS, GP2S27V6, GP2S28 Selling Leads, Datasheet

MFG:Sharp Microelectronics Category:Sensors, Transducers Package Cooled:SMD D/C:01

GP2S27TS, GP2S27V6, GP2S28 Datasheet download

Five Points

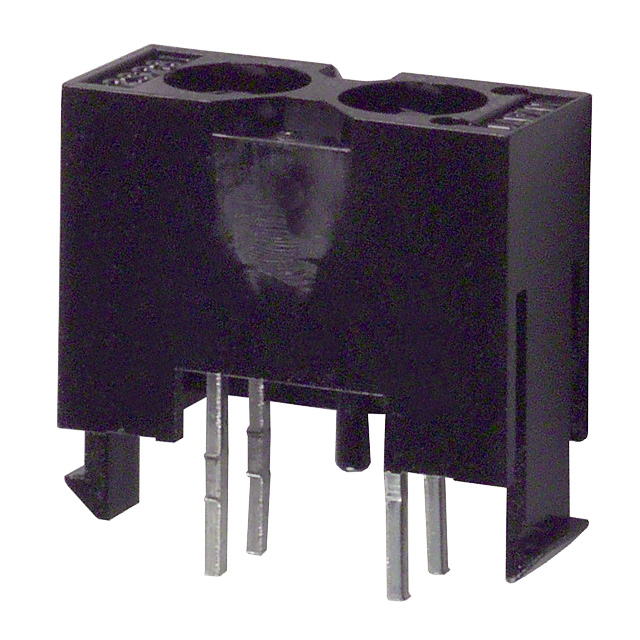

Part Number: GP2S28

Category: Sensors, Transducers

MFG: Sharp Microelectronics

Package Cooled: SMD

D/C: 01

Description: PHOTOINTERRUPTER REFLEC 6MM PCB

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

GP2S28 Parameters

Technical/Catalog Information	GP2S28
Vendor	Sharp Microelectronics
Category	Sensors, Transducers
Sensing Distance	0.551" (14mm)
Sensing Method	Reflective
Output Type	Phototransistor
Voltage - Collector Emitter Breakdown (Max)	35V
Current - Collector (Ic) (Max)	20mA
Current - DC Forward (If)	60mA
Response Time	20s , 20s <!--20us-->
Operating Temperature	-25°C ~ 85°C
Features	Snap-Mount
Mounting Type	Through Hole
Package / Case	PCB Mount
Packaging	Bulk
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	GP2S28 GP2S28 425 1095 5 ND 42510955ND 425-1095-5

GP2S28 Maximum Ratings

Parameter		Symbol	Rating	Unit
Input	Forward current	I_F	60	mA
	^*1 Peak forward current	I_FM	1	A
	Reverse voltag	V_R	6	V
	Power dissipation	P	150	mW
Output	Collector-emitter voltage	V_CEO	35	V
	Emitter-collector voltage	V_ECO	6	V
	Collector current	I_C	20	MA
	Collector power dissipation	P_C	50	mW
Operating temperature		T_opr	- 25 to + 85	°C
Storage temperature		T_stg	- 40 to + 100	°C
^*2 Soldering temperature		T_sol	260	°C

*1 Pulse width<=100s, Duty ratio= 0.01
*2 For 5 seconds

GP2S28 Features

·Long focal distance type ( Detecting range: 6mm )
·With pins for protection of wrong insertion
·Snap-in mounting type

GP2S28 Typical Application

·CD players
·Facsimiles
·Printers
