GP2010

Features:

·Low Voltage Operation (3V - 5V)
·Low Power - 200mW typ. (3V supply)
·C/A Code Compatible
·On-chip PLL Including Complete VCO
·Triple Conversion Receiver
·44-Lead Surface Mount Quad Flat-Pack Package
·Sign and Magnitude Digital Outputs
·Compatible with GP2021 CMOS Correlator


Application

·C/A Code Global Positioning by Satellite Receivers
·Time Standards
·Navigation
·Surveying

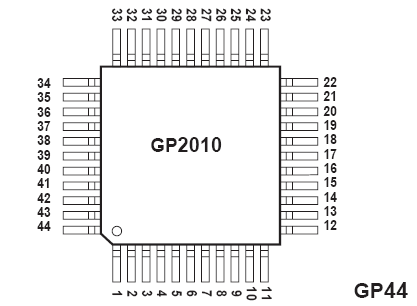

Pinout




Specifications

Max. Supply Voltage ....................................................7V
Max. RF Input ......................................................+15dBm
Max. voltage on any pin .........................V_CC/V_DD + 0.5V
except LD (pin 19) and PReset (pin 9), which are 5.5V
Min. voltage on any pin ...................................V_EE - 0.5V
Storage Temperature .........................-65°C to +150°C
Operation Junction Temperature ........-40°C to +150°C
10MHz Reference Input ..................................1.5V pk -pk


Description

The GP2010 is Mitel Semiconductor second generation RF Front-end for Global Positioning System (GPS) receivers. The GP2010 uses many innovative design techniques and a leading-edge bipolar process to offer a low power, low cost and high reliability RF Front End solution . The GP2010 is designed to operate from either 3 or 5 Volt power supplies.

The input to the device is the L1 (1575.42MHz) Coarse- Acquisition (C/A) code Global Positioning signal from an antenna (via a low-noise pre-amplifier). The output is 2-bit quantised for subsequent signal processing in the digital domain. The GP2010 contains an on-chip synthesiser, mixers, AGC and a quantiser which provides Sign and Magnitude digital outputs. A minimum of external components is required to make a complete GPS front-end.

The GP2010 has been designed to operate with the GP2021 12-channel Global Positioning Correlator, and DW9255 SAW filter, both also available from Mitel Semiconductor.
