MFG:Fairchild Semiconductor Category:Integrated Circuits (ICs) Package Cooled:TO-220 D/C:06+
FSQ05A06, FSQ0765RQWDTU, FSQ100 Datasheet download
Category: Integrated Circuits (ICs)
MFG: Fairchild Semiconductor
Package Cooled: TO-220
D/C: 06+
Description: IC SWIT PWM GREEN OVP HV 8DIP
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download
Datasheet: FSQ05A06B
File Size: 59057 KB
Manufacturer: NIEC [Nihon Inter Electronics Corporation]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: FSQ0270RNA
File Size: 969807 KB
Manufacturer: Fairchild Semiconductor
Download : Click here to Download
PDF/DataSheet Download
Datasheet: FSQ0270RNA
File Size: 969807 KB
Manufacturer: Fairchild Semiconductor
Download : Click here to Download

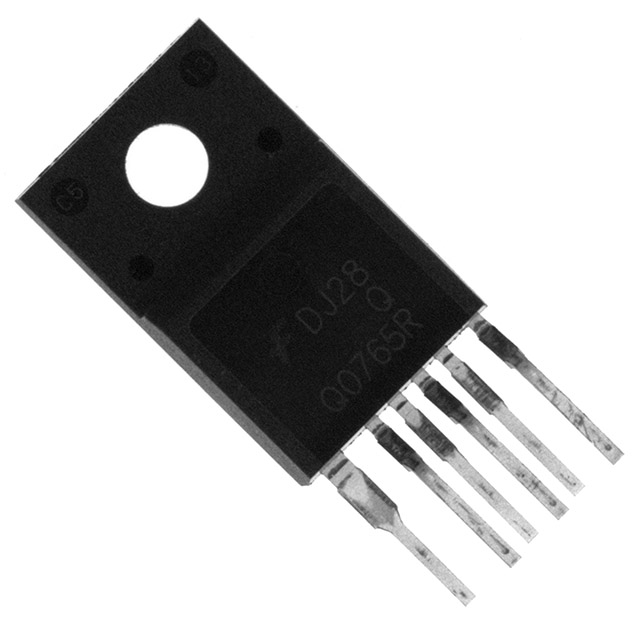

| Technical/Catalog Information | FSQ0765RQWDTU |
| Vendor | Fairchild Semiconductor |
| Category | Integrated Circuits (ICs) |
| Packaging | Tube |
| Package / Case | TO-220F-6 |
| Power (Watts) | 90W |
| Voltage - Input | 9 ~ 20 V |
| Voltage - Output | 650V |
| Frequency Range | 59.6 ~ 75.8kHz |
| Operating Temperature | 25°C ~ 85°C |
| Output Isolation | Isolated |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | FSQ0765RQWDTU FSQ0765RQWDTU |
| Technical/Catalog Information | FSQ100 |
| Vendor | Fairchild Semiconductor |
| Category | Integrated Circuits (ICs) |
| Packaging | Tube |
| Package / Case | 8-DIP |
| Power (Watts) | 13W |
| Voltage - Input | 8 ~ 20 V |
| Voltage - Output | 650V |
| Frequency Range | 61 ~ 73kHz |
| Operating Temperature | 25°C ~ 85°C |
| Output Isolation | Isolated |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | FSQ100 FSQ100 |
The FSQ100 consists of an integrated Pulse WidthModulator (PWM) and SenseFET, specifically designedfor high-performance, off-line, Switch-Mode PowerSupplies (SMPS) with minimal external components.This device is an integrated high-voltage powerswitching regulator that combines a VDMOS SenseFETwith a voltage mode PWM control block. The integratedPWM controller features include a fixed oscillator,Under-Voltage Lockout (UVLO) protection, LeadingEdge Blanking (LEB), an optimized gate turn-on/turn-offdriver, Thermal Shutdown (TSD) protection, andtemperature-compensated precision-current sources forloop compensation and fault protection circuitry.
When compared to a discrete MOSFET and controller orRCC solution, the FSQ100 device reduces totalcomponent count and design size and weight, whileincreasing efficiency, productivity, and system reliability.This device provides a basic platform well suited forcost-effective flyback converters.
| Product | Product status | Eco Status | Pricing* | Package type | Leads | Packing method | Package Drawing | Package Marking Convention** |
|---|---|---|---|---|---|---|---|---|
| FSQ100 | Full Production | RoHS Compliant | $0.61 | DIP | 8 | RAIL | TBD | Line 1: Q100 Line 2: &E&Z&3 |
| * Fairchild 1,000 piece Budgetary Pricing |
| ** A sample button will appear if the part is available through Fairchild's on-line samples program. If there is no sample button, please contact a Fairchild distributor to obtain samples |
Package marking information for product FSQ100 is available. Click here for more information . |
