MFG:Fairchild Semiconductor Category:Discrete Semiconductor Products Package Cooled:N/A D/C:09+

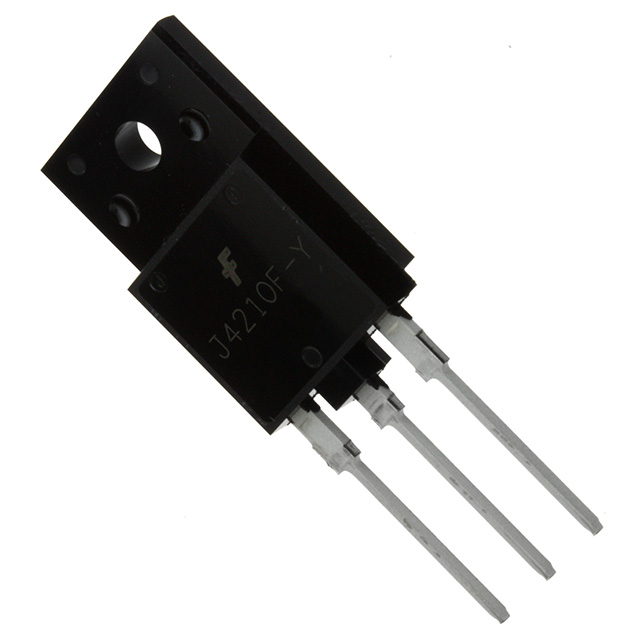

FJAF4210YTU, FJAF4310, FJAF4310OTU Datasheet download
Category: Discrete Semiconductor Products
MFG: Fairchild Semiconductor
Package Cooled: N/A
D/C: 09+
Description: TRANSISTOR NPN 140V 10A TO-3PF
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download
Datasheet: FJA13009
File Size: 52290 KB
Manufacturer: FAIRCHILD [Fairchild Semiconductor]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: FJAF4310
File Size: 89269 KB
Manufacturer: FAIRCHILD [Fairchild Semiconductor]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: FJA13009
File Size: 52290 KB
Manufacturer: FAIRCHILD [Fairchild Semiconductor]
Download : Click here to Download
| Technical/Catalog Information | FJAF4210YTU |
| Vendor | Fairchild Semiconductor |
| Category | Discrete Semiconductor Products |
| Transistor Type | PNP |
| Voltage - Collector Emitter Breakdown (Max) | 140V |
| Current - Collector (Ic) (Max) | 10A |
| Power - Max | 80W |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 90 @ 3A, 4V |
| Vce Saturation (Max) @ Ib, Ic | 500mV @ 500mA, 5A |
| Frequency - Transition | 30MHz |
| Current - Collector Cutoff (Max) | - |
| Mounting Type | Through Hole |
| Package / Case | TO-3PF |
| Packaging | Tube |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | FJAF4210YTU FJAF4210YTU |
| Symbol | Parameter |
Value |
Unit | |
| VCBO |
Collector-Base Voltage |
200 | V | |
| VCEO |
Collector-Emitter Voltage |
140 | V | |
| VEBO |
Emitter-Base Voltage |
6 | V | |
| IC |
Collector Current (DC) |
10 | A | |
| IB | Base Current (DC) |
1.5 |
A | |
| PC |
Collector Dissipation (TC=25°C) |
80 | W | |
| RJC | Junction to Case |
1.48 |
°C/W | |
| TJ | Junction Temperature |
150 |
| |
| TSTG |
Storage Temperature |
- 55 ~ 150 |
||
| Technical/Catalog Information | FJAF4310OTU |
| Vendor | Fairchild Semiconductor |
| Category | Discrete Semiconductor Products |
| Transistor Type | NPN |
| Voltage - Collector Emitter Breakdown (Max) | 140V |
| Current - Collector (Ic) (Max) | 10A |
| Power - Max | 80W |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 70 @ 3A, 4V |
| Vce Saturation (Max) @ Ib, Ic | 500mV @ 500mA, 5A |
| Frequency - Transition | 30MHz |
| Current - Collector Cutoff (Max) | - |
| Mounting Type | Through Hole |
| Package / Case | TO-3PF |
| Packaging | Tube |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | FJAF4310OTU FJAF4310OTU |
