FJA4310, FJA43100TU, FJA4310OTU

Table of contents:
Info of FJA4310
Info of FJA43100TU
Info of FJA4310OTU

FJA4310, FJA43100TU, FJA4310OTU Selling Leads, Datasheet

MFG:Fairchild Semiconductor Category:Discrete Semiconductor Products Package Cooled:SOP-3P D/C:02+

FJA4310, FJA43100TU, FJA4310OTU Datasheet download

Five Points

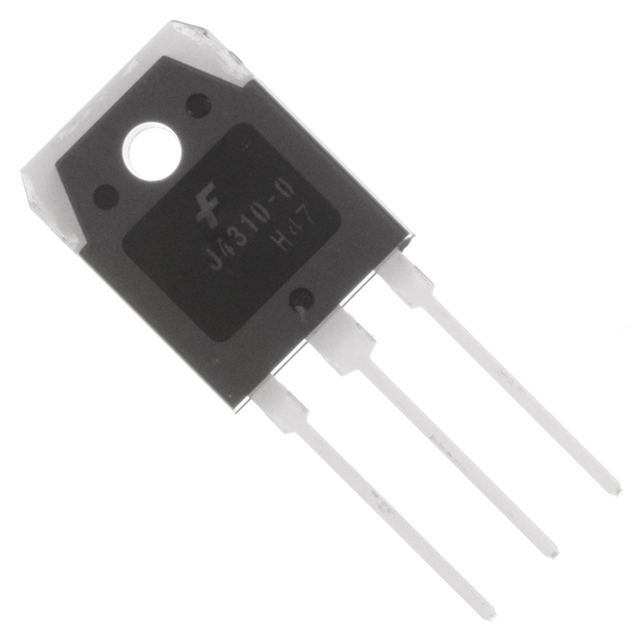

Part Number: FJA4310OTU

Category: Discrete Semiconductor Products

MFG: Fairchild Semiconductor

Package Cooled: SOP-3P

D/C: 02+

Description: TRANSISTOR NPN 140V 10A TO-3P

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

FJA4310 Maximum Ratings

Symbol	Parameter	Value	Unit
V_CBO	Collector-Base Voltage	200	V
V_CEO	Collector-Emitter Voltage	140	V
V_EBO	Emitter-Base Voltage	6	V
I_C	Collector Current (DC)	10	A
I_B	Base Current (DC)	1.5	A
P_C	Collector Dissipation (T_C=25°C)	100	W
T_J	Junction Temperature	150
T_STG	Storage Temperature	- 55 ~ 150

FJA4310OTU Parameters

Technical/Catalog Information	FJA4310OTU
Vendor	Fairchild Semiconductor
Category	Discrete Semiconductor Products
Transistor Type	NPN
Voltage - Collector Emitter Breakdown (Max)	140V
Current - Collector (Ic) (Max)	10A
Power - Max	100W
DC Current Gain (hFE) (Min) @ Ic, Vce	70 @ 3A, 4V
Vce Saturation (Max) @ Ib, Ic	500mV @ 500mA, 5A
Frequency - Transition	30MHz
Current - Collector Cutoff (Max)	-
Mounting Type	Through Hole
Package / Case	TO-3P
Packaging	Tube
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	FJA4310OTU FJA4310OTU
