MFG:Rohm Semiconductor Category:Discrete Semiconductor Products Package Cooled:Sot-363 D/C:09+
EMH4, EMH4T2R, EMH6 Datasheet download
Category: Discrete Semiconductor Products
MFG: Rohm Semiconductor
Package Cooled: Sot-363
D/C: 09+

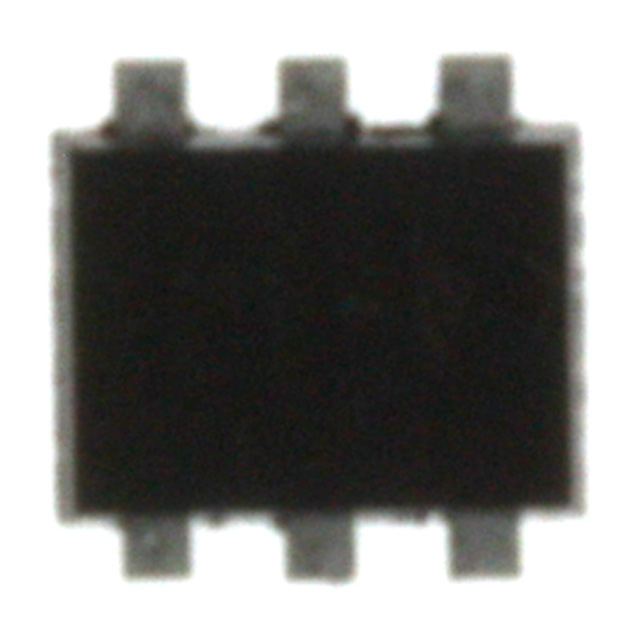

Description: TRANS DUAL NPN 50V 100MA EMT6
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download
Datasheet: EMH4
File Size: 86602 KB
Manufacturer: ROHM
Download : Click here to Download
PDF/DataSheet Download
Datasheet: EMH1
File Size: 68953 KB
Manufacturer: ROHM [Rohm]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: EMH6
File Size: 36485 KB
Manufacturer: ROHM [Rohm]
Download : Click here to Download
|
Parameter |
Symbol |
Limits |
Unit | |
|
Collector-base voltage |
VCBO |
50 |
V | |
|
Collector-emitter voltage |
VCEO |
50 |
V | |
|
Emitter-base voltage |
VEBO |
5 |
V | |
|
Collector current |
IC |
100 |
mA | |
|
Power dissipation |
EMG4 / EMH4 / UMG4N / UMH4N / UMH8N |
PD |
150(TOTAL) |
mW *1 mW *2 |
|
FMG4A / IMH4A / IMH8A |
300(TOTAL) | |||
|
Junction temperature |
Tj |
150 |
°C | |
|
Storage temperature |
Tstg |
−55 to +150 |
°C | |
| Technical/Catalog Information | EMH4T2R |
| Vendor | Rohm Semiconductor |
| Category | Discrete Semiconductor Products |
| Transistor Type | 2 NPN - Pre-Biased (Dual) |
| Voltage - Collector Emitter Breakdown (Max) | 50V |
| Current - Collector (Ic) (Max) | 100mA |
| Power - Max | 150mW |
| Resistor - Base (R1) (Ohms) | 10K |
| Resistor - Emitter Base (R2) (Ohms) | - |
| Vce Saturation (Max) @ Ib, Ic | 300mV @ 1mA, 10mA |
| Current - Collector Cutoff (Max) | - |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 100 @ 1mA, 5V |
| Frequency - Transition | 250MHz |
| Mounting Type | Surface Mount |
| Package / Case | EMT6 |
| Packaging | Tape & Reel (TR) |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | EMH4T2R EMH4T2R EMH4T2RTR ND EMH4T2RTRND EMH4T2RTR |
Paramete |
Symbo |
Limits |
Unit |
|
| Supply voltage | VCC |
50 |
V |
|
| Input voltage | VIN |
40 |
V |
|
-10 |
||||
| Output current | IO |
30 |
mA |
|
| Power dissipation | EMH6 / UMH6N | Pd |
150(TOTAL) |
mW |
| IMH6A | 300(TOTAL) |
|||
| Junction temperature | Tj | 150 | ||
| Storage temperature | TSTG |
-55~+150 |
||
Paramete |
Symbo |
Limits |
Unit |
|
| Supply voltage | VCC |
50 |
V |
|
| Input voltage | VIN |
40 |
V |
|
-10 |
||||
| Output current | IO |
30 |
mA |
|
| Power dissipation | EMH6 / UMH6N | Pd |
150(TOTAL) |
mW |
| IMH6A | 300(TOTAL) |
|||
| Junction temperature | Tj | 150 | ||
| Storage temperature | TSTG |
-55~+150 |
||
