EMH2, EMH25, EMH2T2R

Table of contents:
Info of EMH2
Info of EMH25
Info of EMH2T2R

EMH2, EMH25, EMH2T2R Selling Leads, Datasheet

MFG:Rohm Semiconductor Category:Discrete Semiconductor Products Package Cooled:Sot-363 D/C:09+

EMH2, EMH25, EMH2T2R Datasheet download

Five Points

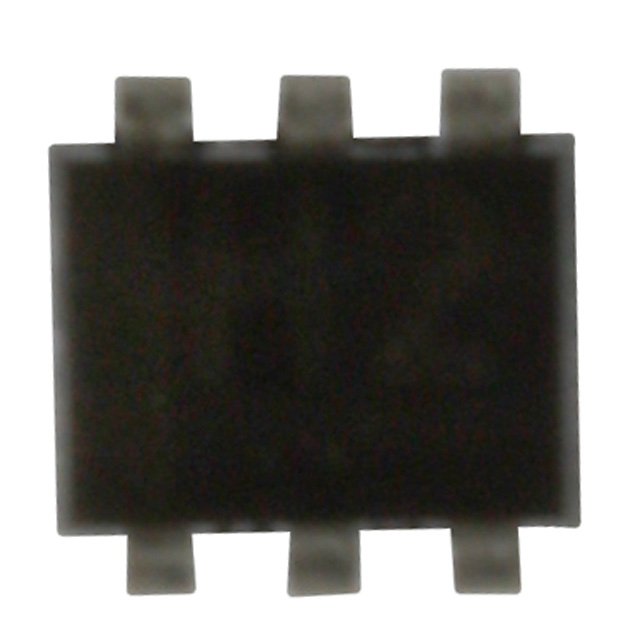

Part Number: EMH2T2R

Category: Discrete Semiconductor Products

MFG: Rohm Semiconductor

Package Cooled: Sot-363

D/C: 09+

Description: TRANS DUAL NPN 50V 30MA EMT6

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

EMH2 Maximum Ratings

Paramete		Symbo	Limits	Unit
Supply voltage		VCC	50	V
Input voltage		VIN	40	V
			-10
Output current		IO	30	mA
		Ic(Max)	100
Power dissipation	EMH2,UMH2N	Pd	150(TOTAL)	mW
	IMH2A		300(TOTAL)
Junction temperature		Tj	150
Storage temperature		TSTG	-55~+150

EMH2 Features

1) Two DTC144Es chips in a EMT or UMT or SMT package.
2) Mounting possible with EMT3 or UMT3 or SMT3 automatic mounting machines.
3) Transistor elements are independent, eliminating interference.
4) Mounting cost and area can be cut in half.

EMH2T2R Parameters

Technical/Catalog Information	EMH2T2R
Vendor	Rohm Semiconductor
Category	Discrete Semiconductor Products
Transistor Type	2 NPN - Pre-Biased (Dual)
Voltage - Collector Emitter Breakdown (Max)	50V
Current - Collector (Ic) (Max)	100mA
Power - Max	150mW
Resistor - Base (R1) (Ohms)	47K
Resistor - Emitter Base (R2) (Ohms)	47K
Vce Saturation (Max) @ Ib, Ic	300mV @ 500A, 10mA
Current - Collector Cutoff (Max)	-
DC Current Gain (hFE) (Min) @ Ic, Vce	68 @ 5mA, 5V
Frequency - Transition	250MHz
Mounting Type	Surface Mount
Package / Case	EMT6
Packaging	Tape & Reel (TR)
Drawing Number	*
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	EMH2T2R EMH2T2R EMH2T2RTR ND EMH2T2RTRND EMH2T2RTR
