EL8103IWZ-T7, EL8103IWZ-T7A, EL8108ISZ

Table of contents:
Info of EL8103IWZ-T7
Info of EL8103IWZ-T7A
Info of EL8108ISZ

EL8103IWZ-T7, EL8103IWZ-T7A, EL8108ISZ Selling Leads, Datasheet

MFG:Intersil Category:Integrated Circuits (ICs) Package Cooled:SOT23-5 D/C:2008

EL8103IWZ-T7, EL8103IWZ-T7A, EL8108ISZ Datasheet download

Five Points

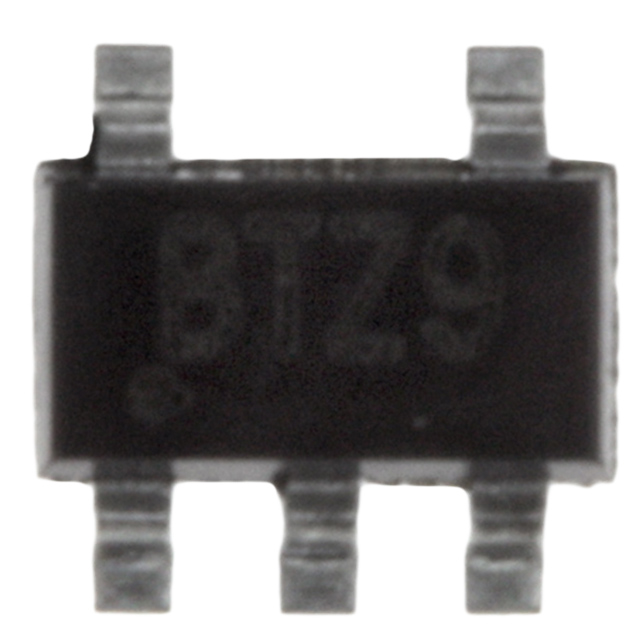

Part Number: EL8103IWZ-T7A

Category: Integrated Circuits (ICs)

MFG: Intersil

Package Cooled: SOT23-5

D/C: 2008

Description: IC AMP VIDEO DISTRIBUTION 8SOIC

Price Break

3000

Unit Price

1.35000

Extended Price

4050.00

(All prices are in USD) Prices for reference only

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

EL8103IWZ-T7 Parameters

Technical/Catalog Information	EL8103IWZ-T7
Vendor	Intersil
Category	Integrated Circuits (ICs)
Packaging	Tape & Reel (TR)
Amplifier Type	Voltage Feedback
Number of Circuits	1 - Single
Package / Case	SOT-23-5
Slew Rate	600 V/s
Gain Bandwidth Product	200MHz
Current - Supply	5.6mA
Current - Output/Channel	65mA
Voltage - Supply, Single/Dual (±)	3 V ~ 5 V, ±1.5 V ~ 2.5 V
Output Type	Rail-to-Rail
-3db Bandwidth	500MHz
Current - Input Bias	6A
Operating Temperature	-40°C ~ 85°C
Voltage - Input Offset	800V
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	EL8103IWZ T7 EL8103IWZT7

EL8103IWZ-T7A Parameters

Technical/Catalog Information	EL8103IWZ-T7A
Vendor	Intersil (VA)
Category	Integrated Circuits (ICs)
Packaging	Cut Tape (CT)
Amplifier Type	Voltage Feedback
Number of Circuits	1 - Single
Package / Case	SOT-23-5
Slew Rate	600 V/s
Gain Bandwidth Product	200MHz
Current - Supply	5.6mA
Current - Output / Channel	65mA
Voltage - Supply, Single/Dual (±)	3 V ~ 5 V, ±1.5 V ~ 2.5 V
Output Type	Rail-to-Rail
-3db Bandwidth	500MHz
Current - Input Bias	6A
Operating Temperature	-40°C ~ 85°C
Voltage - Input Offset	800V
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	EL8103IWZ T7A EL8103IWZT7A EL8103IWZ T7ACT ND EL8103IWZT7ACTND EL8103IWZ-T7ACT

EL8108ISZ Parameters

Technical/Catalog Information	EL8108ISZ
Vendor	Intersil
Category	Integrated Circuits (ICs)
Applications	Current Feedback
-3db Bandwidth	200MHz
Slew Rate	800 V/s
Number of Circuits	2 - Dual
Current - Supply	14.3mA
Current - Output/Channel	450mA
Voltage - Supply, Single/Dual (±)	5 V ~ 12 V, ±2.5 V ~ 6 V
Output Type	-
Package / Case	8-SOIC
Packaging	Tube
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	EL8108ISZ EL8108ISZ
