DTD113ZKA, DTD113ZKT146, DTD113ZU

Table of contents:
Info of DTD113ZKA
Info of DTD113ZKT146
Info of DTD113ZU

DTD113ZKA, DTD113ZKT146, DTD113ZU Selling Leads, Datasheet

MFG:Rohm Semiconductor(VA) Category:Discrete Semiconductor Products Package Cooled:SC59 D/C:09+

DTD113ZKA, DTD113ZKT146, DTD113ZU Datasheet download

Five Points

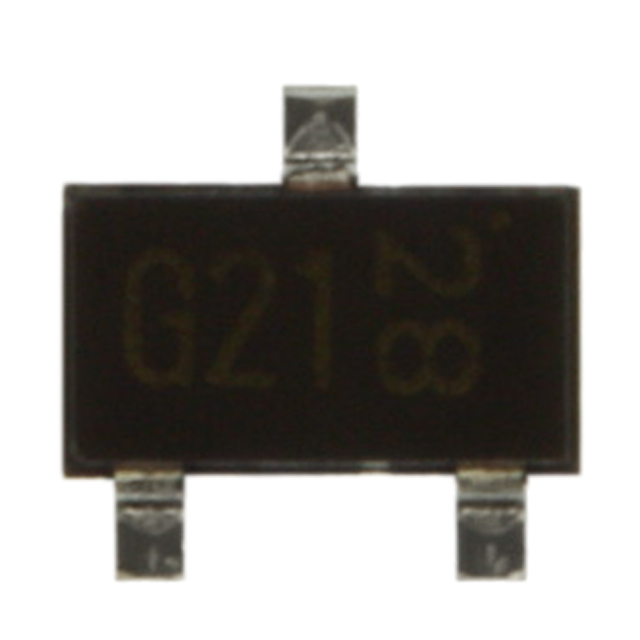

Part Number: DTD113ZKT146

Category: Discrete Semiconductor Products

MFG: Rohm Semiconductor(VA)

Package Cooled: SC59

D/C: 09+

Description: TRAN DIGIT NPN 50V 500MA SOT-346

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

DTD113ZKT146 Parameters

Technical/Catalog Information	DTD113ZKT146
Vendor	Rohm Semiconductor(VA)
Category	Discrete Semiconductor Products
Transistor Type	NPN - Pre-Biased
Voltage - Collector Emitter Breakdown (Max)	50V
Current - Collector (Ic) (Max)	500mA
Power - Max	200mW
Resistor - Base (R1) (Ohms)	1K
Resistor - Emitter Base (R2) (Ohms)	10K
Vce Saturation (Max) @ Ib, Ic	300mV @ 2.5mA, 50mA
Current - Collector Cutoff (Max)	-
DC Current Gain (hFE) (Min) @ Ic, Vce	82 @ 50mA, 5V
Frequency - Transition	200MHz
Mounting Type	Surface Mount
Package / Case	SC-59-3, SMT3, SOT-346, TO-236
Packaging	Digi-Reel?
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	DTD113ZKT146 DTD113ZKT146 DTD113ZKT146DKR ND DTD113ZKT146DKRND DTD113ZKT146DKR

DTD113ZU Maximum Ratings

Paramter	Symbol	limits(DTD113Z)			Unit
		U	K	S
Supply voltage	V_cc	50			V
Input voltage	V_IN	-5 to +10			V
Ouput current	I_O	50			mA
Power dissipation	P_d	200		300	mW
Junction temperature	T_j	150
Storage temperature	T_stg	-55 to +150

DTD113ZU Features

1) Built-in bias resistors enable the configuration of an inverter circuit without connecting external input resistors (see equivalent circuit).
2) The bias resistors consist of thin film resistors with complete isolation to allow negative biasing of the input. They also have the advantage of almost completely eliminating parasitic effects.
3) Only the on/off conditions need to be set for operation, making device design easy.
