DMN2050L-7, DMN2170U-7, DMN3010LSS-13

Table of contents:
Info of DMN2050L-7
Info of DMN2170U-7
Info of DMN3010LSS-13

DMN2050L-7, DMN2170U-7, DMN3010LSS-13 Selling Leads, Datasheet

MFG:Diodes Inc Category:Discrete Semiconductor Products Package Cooled:SOT-23 D/C:09+

DMN2050L-7, DMN2170U-7, DMN3010LSS-13 Datasheet download

Five Points

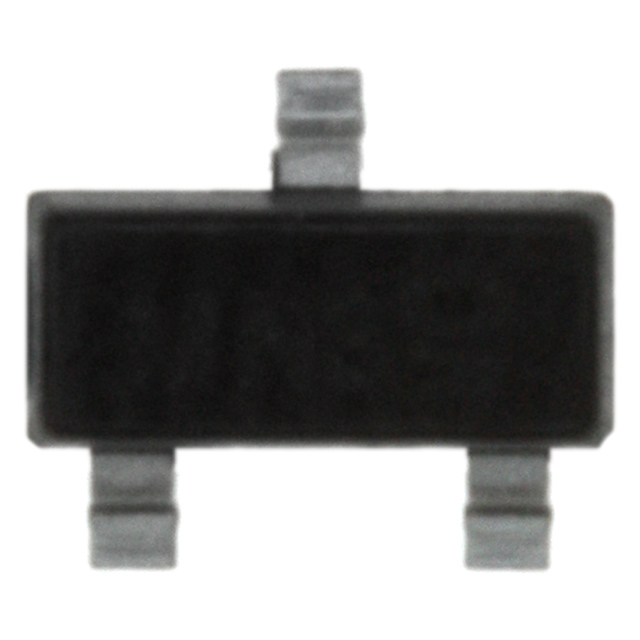

Part Number: DMN2050L-7

Category: Discrete Semiconductor Products

MFG: Diodes Inc

Package Cooled: SOT-23

D/C: 09+

Description: MOSFET N-CH 30V 16A 8-SOIC

Price Break

3000
6000
12000
27000
51000

Unit Price

.13500
.12825
.12150
.11475
.11250

Extended Price

405.00
769.50
1458.00
3098.25
5737.50

(All prices are in USD) Prices for reference only

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

DMN2050L-7 Parameters

Technical/Catalog Information	DMN2050L-7
Vendor	Diodes Inc
Category	Discrete Semiconductor Products
Mounting Type	Surface Mount
FET Polarity	N-Channel
Drain to Source Voltage (Vdss)	20V
Current - Continuous Drain (Id) @ 25° C	5.9A
Rds On (Max) @ Id, Vgs	29 mOhm @ 5A, 4.5V
Input Capacitance (Ciss) @ Vds	532pF @ 10V
Power - Max	1.4W
Packaging	Tape & Reel (TR)
Gate Charge (Qg) @ Vgs	6.7nC @ 4.5V
Package / Case	SOT-23-3, TO-236-3, Micro3?, SSD3, SST3
FET Feature	Logic Level Gate
Drawing Number	*
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	DMN2050L 7 DMN2050L7 DMN2050LDITR ND DMN2050LDITRND DMN2050LDITR

DMN2170U-7 Parameters

Technical/Catalog Information	DMN2170U-7
Vendor	Diodes Inc (VA)
Category	Discrete Semiconductor Products
Mounting Type	Surface Mount
FET Polarity	N-Channel
Drain to Source Voltage (Vdss)	20V
Current - Continuous Drain (Id) @ 25° C	2.3A
Rds On (Max) @ Id, Vgs	70 mOhm @ 3A, 4.5V
Input Capacitance (Ciss) @ Vds	217pF @ 10V
Power - Max	600mW
Packaging	Digi-Reel?
Gate Charge (Qg) @ Vgs	-
Package / Case	SOT-23-3, TO-236-3, Micro3?, SSD3, SST3
FET Feature	Logic Level Gate
Drawing Number	*
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	DMN2170U 7 DMN2170U7 DMN2170UDIDKR ND DMN2170UDIDKRND DMN2170UDIDKR

DMN3010LSS-13 Parameters

Technical/Catalog Information	DMN3010LSS-13
Vendor	Diodes Inc
Category	Discrete Semiconductor Products
Mounting Type	Surface Mount
FET Polarity	N-Channel
Drain to Source Voltage (Vdss)	30V
Current - Continuous Drain (Id) @ 25° C	16A
Rds On (Max) @ Id, Vgs	9 mOhm @ 16A, 10V
Input Capacitance (Ciss) @ Vds	2096pF @ 15V
Power - Max	2.5W
Packaging	Tape & Reel (TR)
Gate Charge (Qg) @ Vgs	43.7nC @ 10V
Package / Case	8-SOP
FET Feature	Logic Level Gate
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	DMN3010LSS 13 DMN3010LSS13
