BU508A-CH, BU508AF, BU508AF(ST)

Table of contents:
Info of BU508A-CH
Info of BU508AF
Info of BU508AF(ST)

BU508A-CH, BU508AF, BU508AF(ST) Selling Leads, Datasheet

MFG:STMicroelectronics Category:Discrete Semiconductor Products Package Cooled:2002 D/C:TO-3PH

BU508A-CH, BU508AF, BU508AF(ST) Datasheet download

Five Points

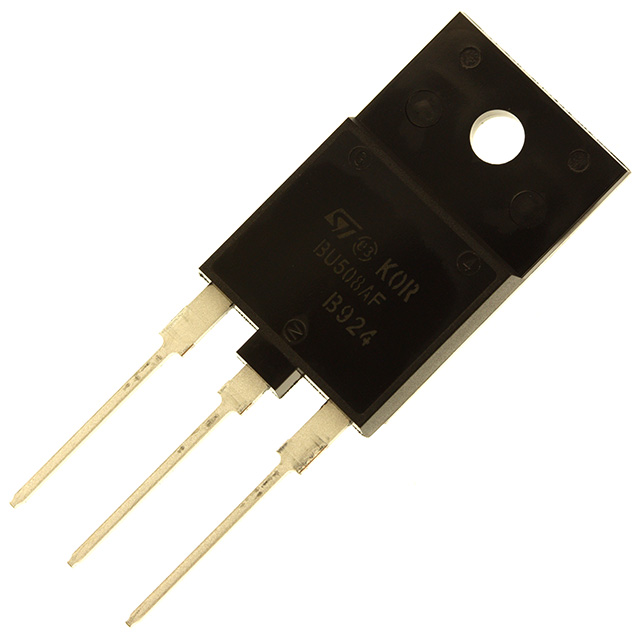

Part Number: BU508AF

Category: Discrete Semiconductor Products

MFG: STMicroelectronics

Package Cooled: 2002

D/C: TO-3PH

Description: TRANS NPN HV CRT ISOWATT218FX

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

BU508AF Parameters

Technical/Catalog Information	BU508AF
Vendor	STMicroelectronics
Category	Discrete Semiconductor Products
Transistor Type	NPN
Voltage - Collector Emitter Breakdown (Max)	700V
Current - Collector (Ic) (Max)	15A
Power - Max	50W
DC Current Gain (hFE) (Min) @ Ic, Vce	10 @ 100mA, 5V
Vce Saturation (Max) @ Ib, Ic	1V @ 1.6A, 4.5A
Frequency - Transition	-
Current - Collector Cutoff (Max)	200A
Mounting Type	Through Hole
Package / Case	ISOWATT218FX
Packaging	Tube
Drawing Number	*
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	BU508AF BU508AF 497 8748 5 ND 49787485ND 497-8748-5

BU508AF Maximum Ratings

Symbol	Parameter	Value	Units
V_CES	Collector-Emitter Voltage	1500	V
V_CEO	Collector-Emitter Voltage	700	V
V_EBO	Emitter-Base Voltage	5	V
I_C	Collector Current (DC)	5	A
I_CP	Collector Current (Pulse)	15	A
P_C	Collector Dissipation (T =25 )	60	W
T_J	Junction Temperature	150
T_STG	Storage Temperature	- 65 ~ 150
