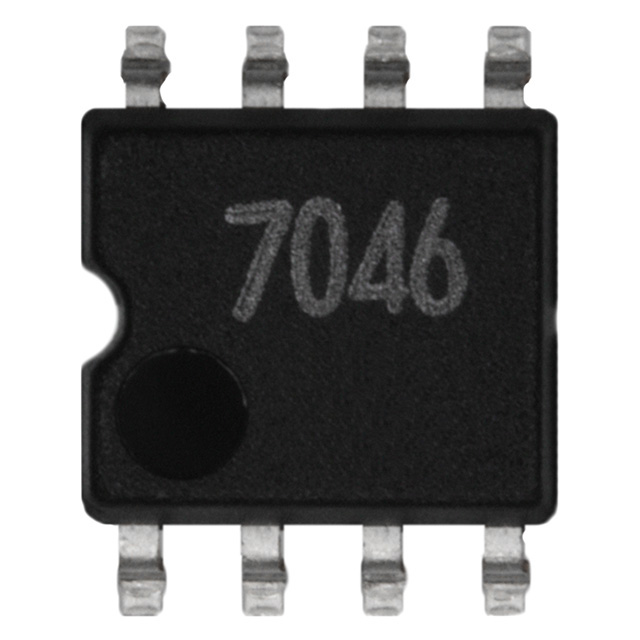

Description: IC SEPARATOR SYNC W/AFC SOP8

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

BA7046F General Description

The BA7046 and BA7046F separate the synchronization signals from a video signal and output the horizontal and vertical synchronization signals (HD and VD), and the composite synchronization signal (Sync-out).

The HD and V_D pulse phase difference is guaranteed.

BA7046F Features

Built-in AFC circuit.
HD and VD phase difference guaranteed.
Low power dissipation. (approx. 21mW)
Low external parts count.
8-pin DIP / SOP package.
Horizontal free-run frequency does not require adjustment.

BA7046F Typical Application

TVs and VCRs

BA7046F Connection Diagram

Parameter	Symbol	Limits	Unit
Power supply voltage	V_{CC Max.}	8.0	V
Power dissipation	P_d	500^*	mV
Operating temperature	T_opr	20 ~ + 75
Storage temperature	T_stg	55 ~ + 125

BA7046F-E2 Parameters

Technical/Catalog Information	BA7046F-E2
Vendor	Rohm Semiconductor(VA)
Category	Integrated Circuits (ICs)
Mounting Type	Surface Mount
Package / Case	8-SOP
Type	Synchronous Separator
Packaging	Digi-Reel?
Applications	-
Drawing Number	*
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	BA7046F E2 BA7046FE2 BA7046F E2DKR ND BA7046FE2DKRND BA7046F-E2DKR
