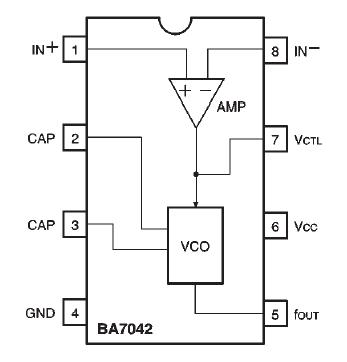

Features: The number of external components is minimized. Internal control amplifier for the VCO. Oscillation frequency can be set with an external constant. Maximum oscillation frequency of 18MHz. DIP 8-pin package.Application FM intercom FM wireless microphone FSK modemPinoutSpecifications ...
BA7042: Features: The number of external components is minimized. Internal control amplifier for the VCO. Oscillation frequency can be set with an external constant. Maximum oscillation frequency of 18MHz. ...
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
The number of external components is minimized.
Internal control amplifier for the VCO.
Oscillation frequency can be set with an external constant.
Maximum oscillation frequency of 18MHz.
DIP 8-pin package.
Parameter | Symbol | Limits | Unit |
Power supply voltage | VCC |
7.0 | V |
Power dissipation | Pd | 800* | mV |
Operating temperature | Topr | −20 ~+70 | |
Storage temperature | Tstg | −55 ~+125 |
The BA7042 is a monolithic IC comprising a VCO (voltage controlled oscillator) with sensitivity adjusting capabilities. The oscillation frequency can be set with an external constant, and is controlled according to the control voltage. The BA7042 can be used to produce high-modulation-factor FM signals by superimposing its control voltage with AC signals, and to configure a PLL circuit just by attaching a frequency divider and a phase comparator.
