AV101-12LF, AV101B, AV102-1 Datasheet download
Category: RF and RFID
MFG: SKYWORKS SOLUTIONS INC (VA)
Package Cooled: SOP
D/C: 06+

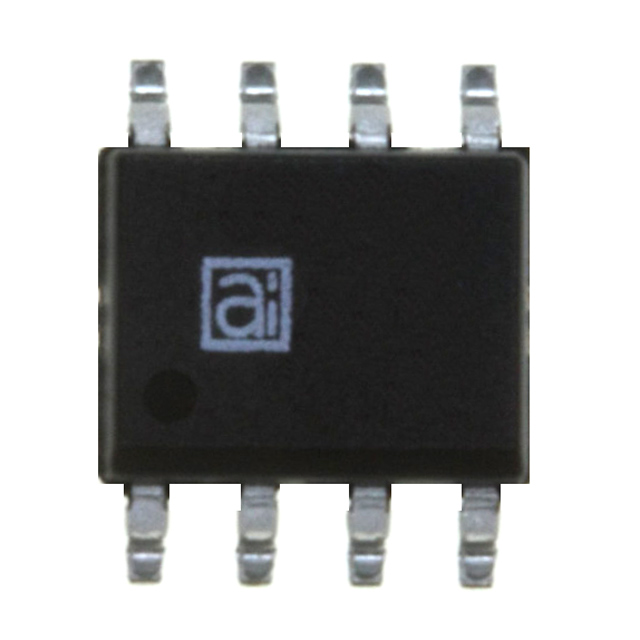

Description: ATTENUATOR HIP3 0.70-1GHZ 8-SOIC
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download
Datasheet: AV100
File Size: 42511 KB
Manufacturer: LEM [LEM]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: AV100
File Size: 42511 KB
Manufacturer: LEM [LEM]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: AV102-12
File Size: 820648 KB
Manufacturer: ALPHA [Alpha Industries]
Download : Click here to Download
| Technical/Catalog Information | AV101-12LF |
| Vendor | SKYWORKS SOLUTIONS INC (VA) |
| Category | RF and RFID |
| Power (Watts) | 500mW |
| Tolerance | - |
| Package / Case | 8-SOIC |
| Impedance | 50 Ohm |
| Attenuation Value | 25dB |
| Frequency Range | 700MHz ~ 1GHz |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | AV101 12LF AV10112LF 863 1029 6 ND 86310296ND 863-1029-6 |
The AV101-12LF is a current controlled, variable attenuator from Skyworks series of HIP3 components. It is designed for meeting the wide dynamic range demanded in spread spectrum, wireless base station applications. A monolithic quadrature hybrid is teamed with a silicon PIN diode pair in a plastic surface mount package, cutting down the size and assuring consistency from part to part.
Features of the AV101-12LF are:(1)50 dBm IP3 typical;(2)low loss 1 dB typical;(3)attenuation 30 dB typical;(4)good VSWR <1.5:1 typical;(5)small SOIC-8 package;(6)available lead (Pb)-free, RoHS-compliant MSL-1 @ 260 °C per JEDE C J-STD-020.
The absolute maximum ratings and electrical specifications(at 25 °C)of the AV101-12LF can be summarized as:(1):RF input power is 0.5 W CW, 4 W @ 12.5% duty cycle;(2):control current is 50 mA per diode;(3):operating temp erature ranges from-40 °C to +85 °C;(4):storage temperature ranges from-65 °C to +150 °C; (5):maximum rever se diode voltage is-10 V;(6):electrostatic discharge is 125 V.Electrical specifications:(1):input signal frequency is 0.7 GHz min and 1GHz max;(2):insertion loss (0 mA control current) is 1dB typ and 1.5 dB max;(3):attenuation at 3.0 mA control current is 18.5dB min and 25 dBdB max;(4):VSWR all ports is 1.5 typ and 1.8 max;(5):input 3rd order intercep t is 47dBm min and 50dBm typ;(6): group delay is 0.9ns typ and 1.2 ns max.
