MFG:Microsemi-PPG Category:Discrete Semiconductor Products Package Cooled:APT D/C:07+
APT2X100S20J, APT2X101-06, APT2X101D100J Datasheet download
Category: Discrete Semiconductor Products
MFG: Microsemi-PPG
Package Cooled: APT
D/C: 07+
Description: DIODE DUAL PAR 95A 1000V SOT-227
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download
Datasheet: APT2X100S20J
File Size: 44171 KB
Manufacturer: ADPOW [Advanced Power Technology]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: APT1001
File Size: 36626 KB
Manufacturer: ADPOW [Advanced Power Technology]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: APT2X101D100J
File Size: 69652 KB
Manufacturer: ADPOW [Advanced Power Technology]
Download : Click here to Download
| Symbol | Characteristic / Test Conditions | APT2X100/2X101S20J | UNIT |
| VR | Maximum D.C. Reverse Voltage | 200 | Volts |
| VRRM | Maximum Peak Repetitive Reverse Voltage | ||
| VRWM | Maximum Working Peak Reverse Voltage | ||
| IF(AV) | Maximum Average Forward Current (TC = 60°C, Duty Cycle = 0.5) |
100 | Amps |
| IF(RMS) | RMS Forward Current | 170 | |
| IFSM | Non-Repetitive Forward Surge Current (TJ = 45°C, 8.3mS) | 1000 | |
| TJ,TSTG | Operating and StorageTemperature Range | -55 to 150 | °C |
| TL | Lead Temperature: 0.063" from Case for 10 Sec | 300 | |
| EAVL | Avalanche Energy(2A,50mH ) | 100 | mJ |

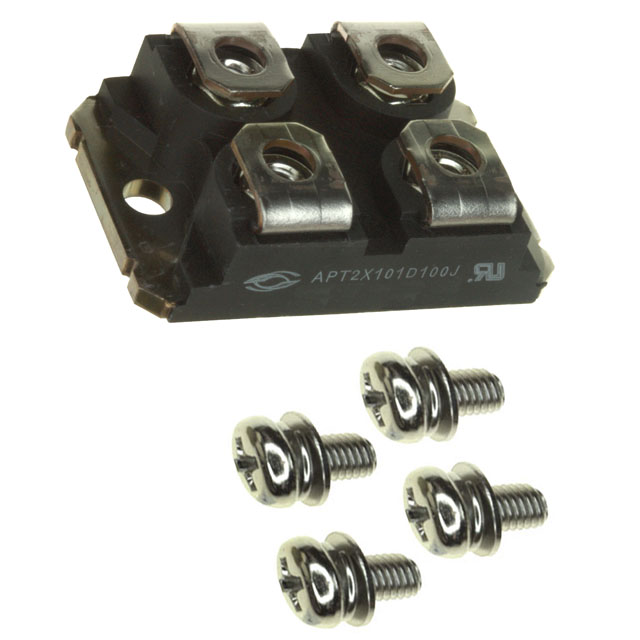

| Technical/Catalog Information | APT2X101D100J |
| Vendor | Microsemi-PPG |
| Category | Discrete Semiconductor Products |
| Diode Type | Standard |
| Diode Configuration | 2 Independent |
| Voltage - DC Reverse (Vr) (Max) | 1000V (1kV) |
| Current - Average Rectified (Io) (per Diode) | 95A |
| Voltage - Forward (Vf) (Max) @ If | 2.5V @ 100A |
| Current - Reverse Leakage @ Vr | 250A @ 1000V |
| Reverse Recovery Time (trr) | 300ns |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Mounting Type | Chassis Mount |
| Package / Case | SOT-227 |
| Packaging | Tube |
| Drawing Number | * |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | APT2X101D100J APT2X101D100J APT2X101D100JMI ND APT2X101D100JMIND APT2X101D100JMI |
| Symbol | Characteristic / Test Conditions | APT2X101D100J | UNIT |
| VR | Maximum D.C. Reverse Voltage | 1000 | Volts |
| VRRM | Maximum Peak Repetitive Reverse Voltage | ||
| VRWM | Maximum Working Peak Reverse Voltage | ||
| IF(AV) | Maximum Average Forward Current (TC = 40°C, Duty Cycle = 0.5) | 100 | Amps |
| IF(RMS) | RMS Forward Current(Square wave, 50% duty) | 170 | |
| IFSM | Non-Repetitive Forward Surge Current (TJ = 45°C, 8.3ms) | 1000 | |
| TJ,TSTG | Operating and StorageTemperature Range | -55 to 150 | °C |
| TL | Lead Temperature: 0.063" from Case for 10 Sec | 300 |
