AOL1424, AOL1428, AOL1432

Table of contents:
Info of AOL1424
Info of AOL1428
Info of AOL1432

AOL1424, AOL1428, AOL1432 Selling Leads, Datasheet

MFG:Alpha & Omega Semiconductor Inc (VA) Category:Discrete Semiconductor Products Package Cooled:Ultra SO8 D/C:09+pbf

AOL1424, AOL1428, AOL1432 Datasheet download

Five Points

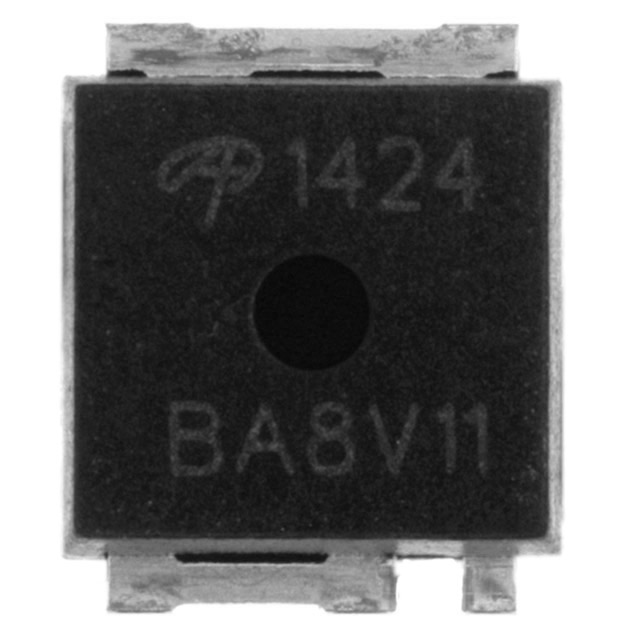

Part Number: AOL1424

Category: Discrete Semiconductor Products

MFG: Alpha & Omega Semiconductor Inc (VA)

Package Cooled: Ultra SO8

D/C: 09+pbf

Description: MOSFET N-CH 25V 44A ULTRA SO-8

Price Break

3000
6000
12000

Unit Price

.33320
.31654
.30940

Extended Price

999.60
1899.24
3712.80

(All prices are in USD) Prices for reference only

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

AOL1424 Parameters

Technical/Catalog Information	AOL1424
Vendor	Alpha & Omega Semiconductor Inc
Category	Discrete Semiconductor Products
Mounting Type	Surface Mount
FET Polarity	N-Channel
Drain to Source Voltage (Vdss)	30V
Current - Continuous Drain (Id) @ 25° C	70A
Rds On (Max) @ Id, Vgs	6.5 mOhm @ 20A, 10V
Input Capacitance (Ciss) @ Vds	2170pF @ 15V
Power - Max	50W
Packaging	Tape & Reel (TR)
Gate Charge (Qg) @ Vgs	48nC @ 10V
Package / Case	SO-8
FET Feature	Standard
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	AOL1424 AOL1424 785 1123 2 ND 78511232ND 785-1123-2

AOL1424 General Description

The AOL1424 uses advanced trench technology to provide excellent R_DS(ON), low gate charge and operation with gate voltages as low as 4.5V,while retaining a 20V V _GS(MAX) rating. It is ESD protected.This device is suitable for use as a load switch. Standard Product AOL1424 is Pb-free (meets ROHS & Sony 259 specifications).

AOL1424 Maximum Ratings

Parameter		Symbol	Maximum	Units
Drain-Source Voltage		V_DS	30	V
Gate-Source Voltage		V_GS	±20	V
Continuous Drain Current ^GF	T_C=25°C	I_D	70	A
	T_C=100°C		50
Pulsed Drain Current ^C		I_DM	120
Continuous Drain Current A	T_A=25°C	I_DSM	23	A
	T_A=100°C		18	A
Avalanche Current ^H		I_AR	30	A
Repetitive avalanche energy L=0.3mH C		E_AR	135	mJ
Power Dissipation ^B	T_C=25°C	P_D	50	W
	T_C=100°C		25
Power Dissipation ^A	T_A=25°C	P_DSM	5	W
	T_A=100°C		3
Junction and Storage Temperature Range		T_J,T_STG	-55 to 175	°C

AOL1424 Features

V_DS (V) = 30V
I_D= 70A (V_GS = 10V)
R _DS(ON) < 5.4m (V_GS = 10V)
R _DS(ON) < 8m (V_GS = 4.5V)

AOL1428 Parameters

Technical/Catalog Information	AOL1428
Vendor	Alpha & Omega Semiconductor Inc
Category	Discrete Semiconductor Products
Mounting Type	Surface Mount
FET Polarity	N-Channel
Drain to Source Voltage (Vdss)	30V
Current - Continuous Drain (Id) @ 25° C	49A
Rds On (Max) @ Id, Vgs	9.5 mOhm @ 20A, 10V
Input Capacitance (Ciss) @ Vds	1000pF @ 15V
Power - Max	43W
Packaging	Tape & Reel (TR)
Gate Charge (Qg) @ Vgs	18nC @ 10V
Package / Case	SO-8
FET Feature	Standard
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	AOL1428 AOL1428 785 1125 2 ND 78511252ND 785-1125-2

AOL1432 Parameters

Technical/Catalog Information	AOL1432
Vendor	Alpha & Omega Semiconductor Inc (VA)
Category	Discrete Semiconductor Products
Mounting Type	Surface Mount
FET Polarity	N-Channel
Drain to Source Voltage (Vdss)	25V
Current - Continuous Drain (Id) @ 25° C	44A
Rds On (Max) @ Id, Vgs	8.5 mOhm @ 30A, 10V
Input Capacitance (Ciss) @ Vds	1716pF @ 12.5V
Power - Max	30W
Packaging	Digi-Reel?
Gate Charge (Qg) @ Vgs	32nC @ 10V
Package / Case	SO-8
FET Feature	Logic Level Gate
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	AOL1432 AOL1432 785 1126 6 ND 78511266ND 785-1126-6
