AOL1418, AOL1420, AOL1426

Table of contents:
Info of AOL1418
Info of AOL1420
Info of AOL1426

AOL1418, AOL1420, AOL1426 Selling Leads, Datasheet

MFG:Alpha & Omega Semiconductor Inc (VA) Category:Discrete Semiconductor Products Package Cooled:Ultra SO8 D/C:08+PB

AOL1418, AOL1420, AOL1426 Datasheet download

Five Points

Part Number: AOL1426

Category: Discrete Semiconductor Products

MFG: Alpha & Omega Semiconductor Inc (VA)

Package Cooled: Ultra SO8

D/C: 08+PB

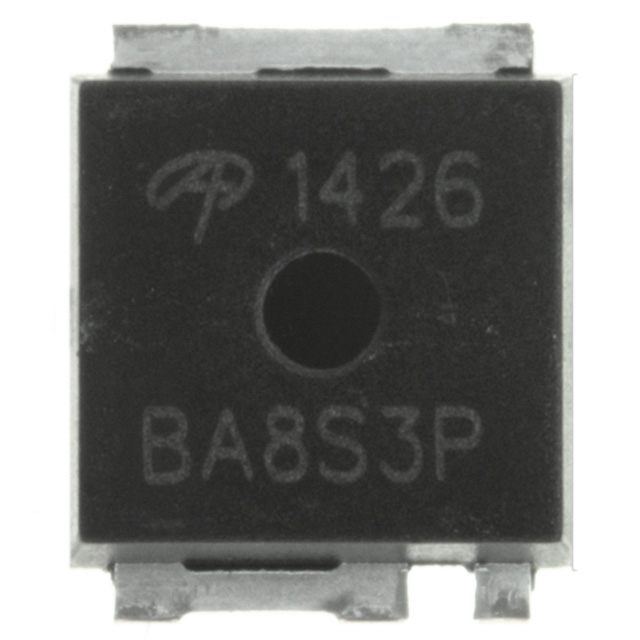

Description: MOSFET N-CH 30V 46A ULTRA SO-8

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

AOL1418 Parameters

Technical/Catalog Information	AOL1418
Vendor	Alpha & Omega Semiconductor Inc (VA)
Category	Discrete Semiconductor Products
Mounting Type	Surface Mount
FET Polarity	N-Channel
Drain to Source Voltage (Vdss)	30V
Current - Continuous Drain (Id) @ 25° C	85A
Rds On (Max) @ Id, Vgs	6 mOhm @ 20A, 10V
Input Capacitance (Ciss) @ Vds	1600pF @ 15V
Power - Max	100W
Packaging	Cut Tape (CT)
Gate Charge (Qg) @ Vgs	32nC @ 4.5V
Package / Case	SO-8
FET Feature	Standard
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	AOL1418 AOL1418 785 1121 1 ND 78511211ND 785-1121-1

AOL1418 General Description

The AOL1418 uses advanced trench technology to provide excellent R_DS(ON), low gate chargeand low gate resistance. This device is ideally suited for use as a high side switch in CPU core power conversion. Standard Product AOL1418 is Pb-free (meets ROHS & Sony 259 specifications). AOL1418L is a Green Product ordering option. AOL1418 and AOL1418L are electrically identical.

AOL1418 Maximum Ratings

Parameter		Symbol	Maximum	Units
Drain-Source Voltage		V_DS	30	V
Gate-Source Voltage		V_GS	±20	V
Continuous Drain Current ^GF	T_C=25°C	I_D	85	A
	T_C=100°C		70
Pulsed Drain Current ^C		I_DM	200
Continuous Drain Current A	T_A=25°C	I_DSM	15	A
	T_A=100°C		12	A
Avalanche Current ^H		I_AR	30	A
Repetitive avalanche energy L=0.3mH C		E_AR	135	mJ
Power Dissipation ^B	T_C=25°C	P_D	100	W
	T_C=100°C		50
Power Dissipation ^A	T_A=25°C	P_DSM	2.5	W
	T_A=100°C		1.6
Junction and Storage Temperature Range		T_J,T_STG	-55 to 175	°C

AOL1418 Features

V_DS (V) = 30V
I_D = 85A (V_GS = 10V)
R_DS(ON) < 6.5m (V_GS= 10V)
R _DS(ON) < 10.5m (V_GS = 4.5V)

AOL1426 Parameters

Technical/Catalog Information	AOL1426
Vendor	Alpha & Omega Semiconductor Inc (VA)
Category	Discrete Semiconductor Products
Mounting Type	Surface Mount
FET Polarity	N-Channel
Drain to Source Voltage (Vdss)	30V
Current - Continuous Drain (Id) @ 25° C	46A
Rds On (Max) @ Id, Vgs	10.5 mOhm @ 20A, 10V
Input Capacitance (Ciss) @ Vds	1452pF @ 15V
Power - Max	43W
Packaging	Digi-Reel?
Gate Charge (Qg) @ Vgs	28nC @ 10V
Package / Case	SO-8
FET Feature	Standard
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	AOL1426 AOL1426 785 1124 6 ND 78511246ND 785-1124-6

AOL1426 General Description

The AOL1426 uses advanced trench technology to provide excellent RDS(ON), low gate charge.This device is suitable for use as a high side switch in SMPS and general purpose applications. Standard Product AOL1426 is Pb-free (meets ROHS & Sony 259 specifications). AOL1426L is a Green Product ordering option. AOL1426 and AOL1426L are electrically identical.

AOL1426 Maximum Ratings

Parameter		Symbol	MOSFET	Units
Drain-Source Voltage		V_DS	30	V
Gate-Source Voltage		V_GS	±12	V
Continuous Drain Current ^B	T_A=25°C	I_D	46	A
	T_A=100°C		33
Pulsed Drain Current		I_DM	120
Continuous Drain Current ^H	T_A=25°C	I_DSM	10
	T_A=70°C		8
Avalanche Current ^C		I_AR	35	A
Repetitive avalanche energy L=0.3mH ^C		E_AR	184	mJ
Power Dissipation ^B	T_A=25°C	P_D	43	W
	T_A=100°C		21
Power Dissipation ^A	T_A=25°C	P_DSM	2.0	W
	T_A=70°C		1
Junction and Storage Temperature Range		T_J, T_STG	-55 to 175	°C

AOL1426 Features

`V_DS (V) = 30V
`I_D = 46A (V_GS = 10V)
`R_DS(ON) <10.5m (V_GS = 10V)
`R_DS(ON) < 12.5m (V_GS = 4.5V)
