AOD4102, AOD410L, AOD4110

Table of contents:
Info of AOD4102
Info of AOD410L
Info of AOD4110

AOD4102, AOD410L, AOD4110 Selling Leads, Datasheet

MFG:Alpha & Omega Semiconductor Inc (VA) Category:Discrete Semiconductor Products Package Cooled:SOT-252 D/C:N/A

AOD4102, AOD410L, AOD4110 Datasheet download

Five Points

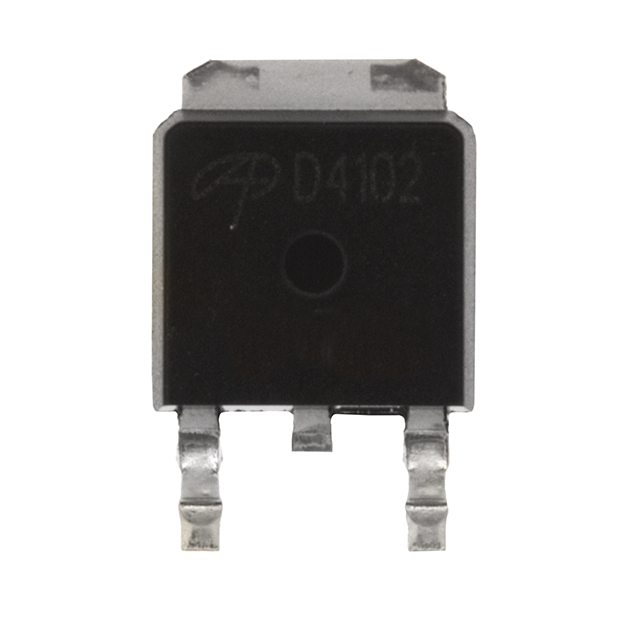

Part Number: AOD4102

Category: Discrete Semiconductor Products

MFG: Alpha & Omega Semiconductor Inc (VA)

Package Cooled: SOT-252

D/C: N/A

Description: MOSFET N-CH 30V 19A TO-252

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

AOD4102 Parameters

Technical/Catalog Information	AOD4102
Vendor	Alpha & Omega Semiconductor Inc (VA)
Category	Discrete Semiconductor Products
Mounting Type	Surface Mount
FET Polarity	N-Channel
Drain to Source Voltage (Vdss)	30V
Current - Continuous Drain (Id) @ 25° C	19A
Rds On (Max) @ Id, Vgs	37 mOhm @ 12A, 10V
Input Capacitance (Ciss) @ Vds	360pF @ 15V
Power - Max	21W
Packaging	Digi-Reel?
Gate Charge (Qg) @ Vgs	6.6nC @ 10V
Package / Case	DPak, SC-63, TO-252 (2 leads+tab)
FET Feature	Standard
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	AOD4102 AOD4102 785 1104 6 ND 78511046ND 785-1104-6

AOD410L General Description

The AOD410 uses advanced trench technology to provide excellent RDS(ON) and low gate charge. This device is suitable for use as a load switch or in PW applications. AOD410L( Green Product ) is offered in a lead-free package.

AOD410L Maximum Ratings

Parameter		Symbol	Maximum	Units
Drain-Source Voltage		V_DS	30	V
Gate-Source Voltage		V_GS	±20	V
Continuous Drain Current ^G	T_C=25°C	I_D	8	A
	T_C=100°C		6
Pulsed Drain Current^B		I_DM	20
Avalanche Current ^C		I_AR	8	A
Repetitive avalanche energy L=0.1mH ^C		E_AR	10	mJ
Power Dissipation ^B	T_C=25°C	P_D	25	W
	T_C=100°C		12.5
Power Dissipation ^A	T_A=25°C	P_DSM	2.1	W
	T_A=70°C		1.33
Junction and Storage Temperature Range		T_J, T_STG	-55 to 175	°C

AOD410L Features

V_DS (V) = 30V
I_D= 8A
R_DS(ON) < 65m (V_GS = 10V)
R_DS(ON) < 105m (V_GS= 4.5V)
