AOD408, AOD409, AOD410

AOD408, AOD409, AOD410 Selling Leads, Datasheet

MFG:Alpha & Omega Semiconductor Inc  Category:Discrete Semiconductor Products  Package Cooled:TO-252  D/C:08+

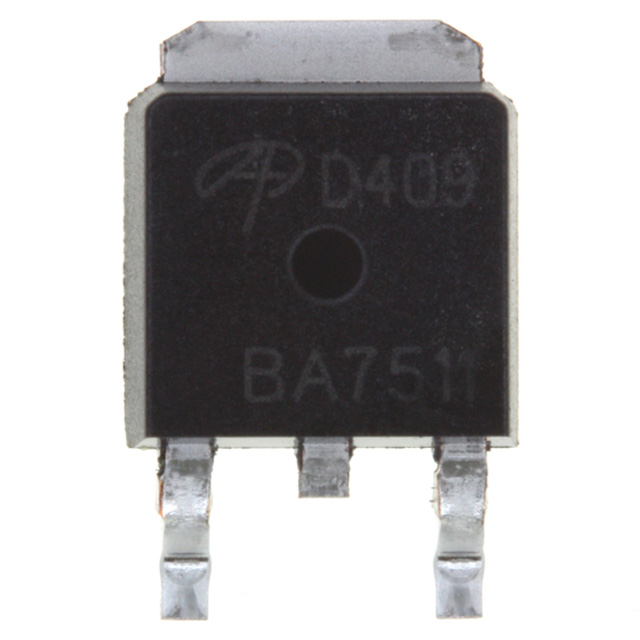

AOD409 Picture

AOD408, AOD409, AOD410 Datasheet download

Five Points

Part Number: AOD409

Category: Discrete Semiconductor Products

MFG: Alpha & Omega Semiconductor Inc

Package Cooled: TO-252

D/C: 08+

Description: MOSFET P-CH -60V -26A TO-252
