AO4404B, AO4406AL, AO4407A Datasheet download
Category: Discrete Semiconductor Products
MFG: Alpha & Omega Semiconductor Inc
Package Cooled: SOP-8
D/C: 08+09+
Description: MOSFET P-CH -30V -12A 8-SOIC
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download
Datasheet: AO4400
File Size: 367760 KB
Manufacturer: AOSMD [Alpha & Omega Semiconductors]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: AO4400
File Size: 367760 KB
Manufacturer: AOSMD [Alpha & Omega Semiconductors]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: AO4400
File Size: 367760 KB
Manufacturer: AOSMD [Alpha & Omega Semiconductors]
Download : Click here to Download

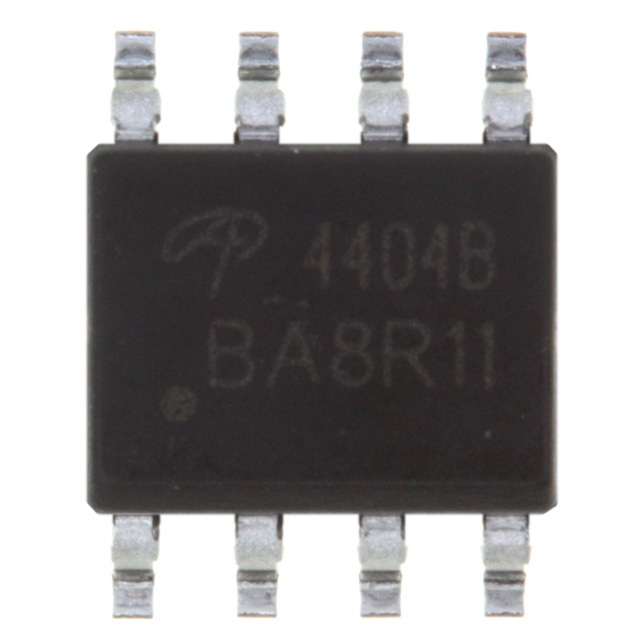

| Technical/Catalog Information | AO4404B |
| Vendor | Alpha & Omega Semiconductor Inc |
| Category | Discrete Semiconductor Products |
| Mounting Type | Surface Mount |
| FET Polarity | N-Channel |
| Drain to Source Voltage (Vdss) | 30V |
| Current - Continuous Drain (Id) @ 25° C | 8.5A |
| Rds On (Max) @ Id, Vgs | 24 mOhm @ 8.5A, 10V |
| Input Capacitance (Ciss) @ Vds | 1100pF @ 15V |
| Power - Max | 2.8W |
| Packaging | Tape & Reel (TR) |
| Gate Charge (Qg) @ Vgs | 12nC @ 4.5V |
| Package / Case | 8-SOIC |
| FET Feature | Logic Level Gate |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | AO4404B AO4404B 785 1020 2 ND 78510202ND 785-1020-2 |
The AO4406AL uses advanced trench technology to provide excellent RDS(ON) with low gate charge.This device is suitable for high side switch in SMPS and general purpose applications.
|
Parameter |
Symbol |
Maximum |
Unit |
| Drain-Source Voltage |
VDS |
30 |
V |
| Gate-Source Voltage |
VGS |
±20 |
V |
| Continuous Drain Current TC=25 TC=70 |
ID
|
12 |
A |
|
10 |
A | ||
| Pulsed Drain Current |
IDM |
100 |
A |
| Avalanche Current |
IAR |
22 |
A |
| Repetitive avalanche energy L=0.1mH |
EAR |
24 |
mJ |
| Power Dissipation TC=25 TC=70 |
PD
|
3.1 |
W |
|
2 |
W | ||
| Junction and Storage Temperature Range |
TJ,TSTG |
-55 to 150 |
| Technical/Catalog Information | AO4407A |
| Vendor | Alpha & Omega Semiconductor Inc |
| Category | Discrete Semiconductor Products |
| Mounting Type | Surface Mount |
| FET Polarity | P-Channel |
| Drain to Source Voltage (Vdss) | 30V |
| Current - Continuous Drain (Id) @ 25° C | 12A |
| Rds On (Max) @ Id, Vgs | 11 mOhm @ 12A, 20V |
| Input Capacitance (Ciss) @ Vds | 2600pF @ 15V |
| Power - Max | 3.1W |
| Packaging | Tape & Reel (TR) |
| Gate Charge (Qg) @ Vgs | 39nC @ 10V |
| Package / Case | 8-SOIC |
| FET Feature | Logic Level Gate |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | AO4407A AO4407A 785 1022 2 ND 78510222ND 785-1022-2 |
