MFG:Pomona Electronics Category:Test Equipment Package Cooled:ATMEL D/C:04
63-700076, 63705-1, 6371 Datasheet download
Category: Test Equipment
MFG: Pomona Electronics
Package Cooled: ATMEL
D/C: 04

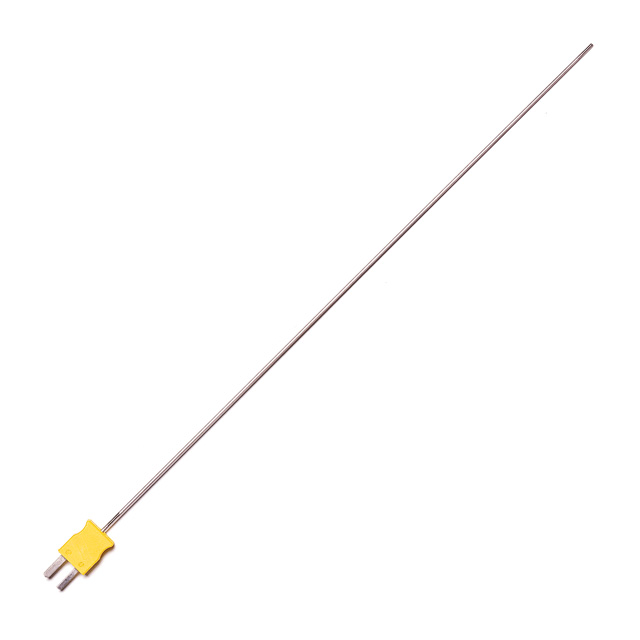

Description: PROBE TEMP 12IN EXTENDED LENGTH
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download
Datasheet:
File Size: KB
Manufacturer:
Download : Click here to Download
PDF/DataSheet Download
Datasheet: 63719
File Size: 63678 KB
Manufacturer:
Download : Click here to Download
PDF/DataSheet Download
Datasheet: 63719
File Size: 63678 KB
Manufacturer:
Download : Click here to Download
| Technical/Catalog Information | 6371 |
| Vendor | Pomona Electronics |
| Category | Test Equipment |
| Cable Insulation | - |
| Cable Length | - |
| Usage | Liquids, Semi Solids |
| Tip - Type | Immersion / Penetration, Rounded |
| Type | K-Type Thermocouple |
| Plug Color | Yellow |
| Plug Type | Sub-Mini (Thermocouple Plug) |
| Probe Length | 12.00" (304.80mm) |
| Probe Material | - |
| Probe Temperature Range | -40 ~ 2000°F (-40 ~ 1093°C) |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | 6371 6371 |
The LM1578A is a switching regulator which can easily be set up for such DC-to-DC voltage conversion circuits as the buck, boost, and inverting configurations. The LM1578A features a unique comparator input stage which not only has separate pins for both the inverting and non-inverting inputs, but also provides an internal 1.0V reference to each input,thereby simplifying circuit design and p.c. board layout. The output can switch up to 750mA and has output pins for its collector and emitter to promote design flexibility. An external current limit terminal may be referenced to either the ground or the Vin terminal, depending upon the application. In addition, the LM1578A has an on board oscillator, which sets the switching frequency with a single external capacitor from < 1Hz to 100kHz (typical).
The LM1578A is an improved version of the LM1578, offering higher maximum ratings for the total supply voltage and output transistor emitter and collector voltages.
Total Supply Voltage
50V
Collector Output to Ground
-0.3V to +50V
Emitter Output to Ground
(Note 2)
-1V to +50V
Power Dissipation
(Note 3)
Internally Limited
Output Current
750mA
Storage Temperature
-65 C to +150 C
Lead Temperature
(Soldering, 10 seconds) 300 C
Maximum Junction Temperature
150 C
ESD Tolerance
(Note 4)
4kV
Note 1: Absolute Maximum Ratings indicate limits beyond which damage to the device may occur.DC and AC electrical specifications do not apply when operating the device beyond its rated operating conditions.
Note 2: For Tj > 100 C, the Emitter pin voltage should not be driven more than 0.6V below ground (see Application Information).
Note 3: At elevated temperatures, devices must be derated based on package thermal resistance. The device in the TO-99 package must be derated at 150 C/W, junction to ambient, or 45 C/W junction to case. The device in the 8-pin DIP must be derated at 95 C/W, junction to ambient. The device in the surface-mount package must be derated at 150 C/W, junction-to-ambient.
Note 4: Human body model, 1.5k Ohm in series with 100pF.
