MFG:Texas Instruments Category:Integrated Circuits (ICs) Package Cooled:BB D/C:2000
3581BMQ, 3581CM, 3581J Datasheet download
Category: Integrated Circuits (ICs)
MFG: Texas Instruments
Package Cooled: BB
D/C: 2000
Description: IC OPAMP GP 5MHZ SGL HV TO-3-8
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download
Datasheet: 3582
File Size: 34295 KB
Manufacturer: GILWAY [Gilway Technical Lamp]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: 3582
File Size: 34295 KB
Manufacturer: GILWAY [Gilway Technical Lamp]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: 3582
File Size: 34295 KB
Manufacturer: GILWAY [Gilway Technical Lamp]
Download : Click here to Download
| Technical/Catalog Information | 3581J |
| Vendor | Texas Instruments |
| Category | Integrated Circuits (ICs) |
| Packaging | Tube |
| Amplifier Type | General Purpose |
| Number of Circuits | 1 - Single |

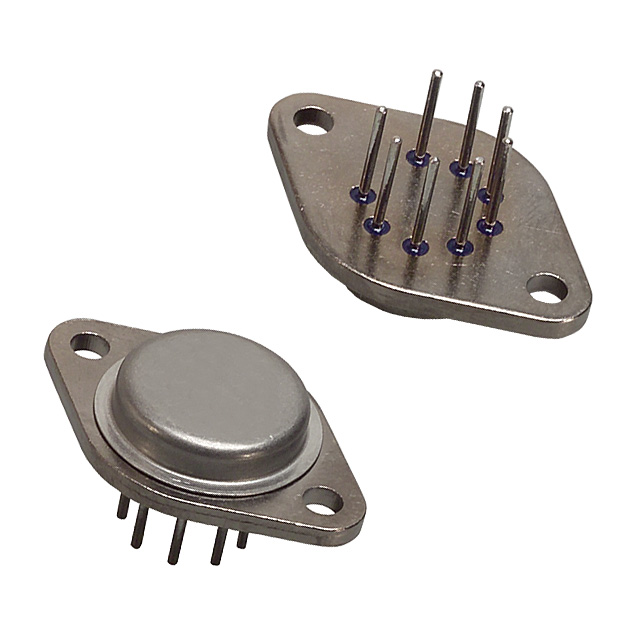

| Package / Case | TO-3-8 |
| Slew Rate | 20 V/s |
| Gain Bandwidth Product | 5MHz |
| Current - Supply | 8mA |
| Current - Output / Channel | 30mA |
| Voltage - Supply, Single/Dual (±) | 64 V ~ 150 V, ±32 V ~ 75 V |
| Output Type | - |
| -3db Bandwidth | - |
| Current - Input Bias | 20pA |
| Operating Temperature | 0°C ~ 70°C |
| Voltage - Input Offset | 3000V |
| Drawing Number | 296; 4202491; LMF; 8 |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | 3581J 3581J |
The 3581J is one member of the 3581 family,it is designed as one kind of integrated circuit operational amplifiers which will provide output voltage swings of up to +/-145V.The monolithic FET input stage has low bias currents which minimizes the offset voltages caused by the bias current and the large resistance normally associated with high voltage circuits.It is packaged in a TO-3 package which will dissipate over 3W of power without a heat sink and 4.5W with a suitable heat sink.The input stage is protected against overvoltages and the output stage is protected against short-circuits-to-ground.A special thermal sensing circuit prevents damage to the amplifier by automatically shutting the amplifier down when too much power is being dissipated.
Features of the 3581J are:(1)high output swings,up to +/-145V;(2)large load currents,up to +/-60mA;(3)difficult to damage,automatic thermal shutoff;(4)reduces source loading;(5)preserves system accuracy 110dB CMR 20pA bias current.If you want to know more information such as the electrical characterist-ics about the 3581J,please download the datasheet in www.seekic.com or www.chinaicmart.com.
