Features:

• Internal ROM and RAM
• External memory expansion space: 64 Kbytes
• Minimum instruction execution time: 0.24 ms (@ f_X= 8.38-MHz operation)
• I/O ports: 51 (N-ch open-drain 5-V withstand voltage: 4)
• 8-bit resolution A/D converter: 8 channels (AV_DD = 1.8 to 5.5 V)
• Serial interface: 3 channels
• Timer: 5 channels
• Power supply voltage: V_DD = 1.8 to 5.5 V

Application

Telephones, home electric appliances, pagers, AV equipment, car audios, office automation equipment, etc.

Pinout

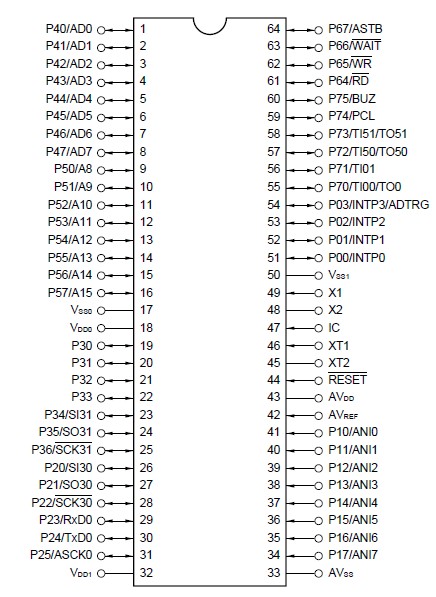

Connection Diagram

Specifications

Parameter	Symbol	Test Conditions			Ratings	Unit
supply voltage	V_DD				0.3 to +6.5	V
	AV_DD				0.3 to V_DD + 0.3^Note	V
	AV_REF				0.3 to V_DD + 0.3^Note	V
	AV_SS				0.3 to +0.3	V
Input voltage	V_I1	P00 to P03, P10 to P17, P20 to P25, P34 to P36, P40 to P47, P50 to P57, P64 to P67, P70 to P75, X1, X2, XT1, XT2, RESET			0.3 to V_DD + 0.3^Note	V
	V_I2	P30 to P33	N-ch open drain	Without pull-up resistor	0.3 to + 6.5 0.3 to V_DD + 0.3^Note	V
				With pull-up resistor
Output voltage	V_O				0.3 to V_DD+ 0.3^Note	V
Analog input voltage	V_AN	P10 to P17		Analog input pin	AV_SS 0.3 to AV_REF0 + 0.3^Note and 0.3 to V_DD + 0.3^Note	V
Output current, high	I_OH	Per pin			300	mA
		Total for P00 to P03, P40 to P47, P50 to P57, P64 to P67, P70 to P75			-15	mA
		Total for P20 to P25, P30 to P36			-15	mA
Output current, low	I_OL	Per pin for P00 to P03, P20 to P25, P34 to P36, P40 to P47, P64 to P67, P70 to P75			20	mA
		Per pin for P30 to P33, P50 to P57			30	mA
		Total for P00 to P03, P40 to P47, P64 to P67, P70 to P75			50	mA
		Total for P20 to P25			20	mA
		Total for P30 to P36			100	mA
		Total for P50 to P57			100	mA
Operating ambient temperature	T_A				40 to +85	°C
Storage temperature	T_stg				65 to +150	°C

Description

The mPD780021A, 780022A, 780023A, and 780024A are members of the mPD780024A Subseries of the 78K/0 Series. Only selected functions of the existing mPD78054 Subseries are provided, and the serial interface is enhanced.

A flash memory version, the mPD78F0034A, that can operate in the same power supply voltage range as the mask ROM version, and various development tools, are available.
