mPD705101

Features: • CPU function• V830-compatible instructions• Instruction cache : 4 KB• Instruction RAM : 4 KB• Data cache : 4 KB• Data RAM : 4 KB• Minimum number of instruction execution cycles : 1 cycle• Number of general purpose registers : 32 bits &acu...

product image

mPD705101 Picture
SeekIC No. : 004426237 Detail

mPD705101: Features: • CPU function• V830-compatible instructions• Instruction cache : 4 KB• Instruction RAM : 4 KB• Data cache : 4 KB• Data RAM : 4 KB• Minimum number...

floor Price/Ceiling Price

Part Number:
mPD705101
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/12

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• CPU function
• V830-compatible instructions
• Instruction cache : 4 KB
• Instruction RAM : 4 KB
• Data cache : 4 KB
• Data RAM : 4 KB
• Minimum number of instruction execution cycles : 1 cycle
• Number of general purpose registers : 32 bits ´ 32
• Memory space and I/O space : 4 GB each
• Interrupt/exception function
• Non-maskable : External input : 1
• Maskable : External input : 8 (of which 4 are multiplexed with internal sources) Internal source: 11 types
• Bus control function
• Wait control function
• Memory access control function
• DMA controller : 4 channel
• Serial interface function
• Asynchronous serial interface (UART): 1 channel
• Clocked serial interface (CSI) : 1 channel
• Dedicated baud rate generator (BRG) : 1 channel
• Timer/counter function
• 16-bit timer/event counter : 1 channel
• 16-bit interval timer : 1 channel
• Port function : 3 I/O ports
• Clock generation function : PLL clock synthesizer
• Standby function : HALT and STOP modes
• Debug function
• Debug-dedicated synchronous serial interface : 1 channel
• Trace-dedicated interface : 1 channel



Pinout

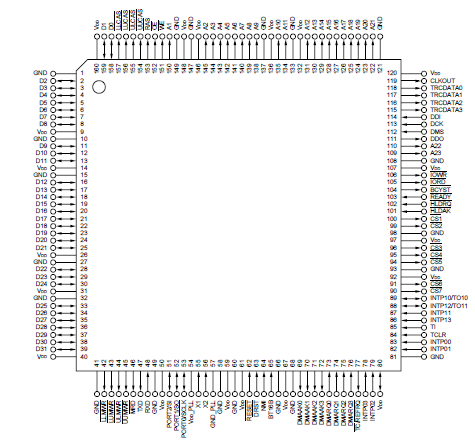

  Connection Diagram




Specifications

Parameter
Symbol
Conditions
Rating
Unit
Power supply voltage
VDD
0.5 to +4.5
V
Input voltage
VI
0.5 to VDD + 0.3
V
Clock input voltage
VK
0.5 to VDD + 0.3
V
Operating ambient temperature
VA
40 to +85
Storage temperature
Tstg
65 to +150
Cautions 1. Do not connect an output (or input/output) pin of an IC device directly to any other output (or input/output) pin of the same device. Do not connect the VDD or VCC pin of an IC device directly to its GND pin or a ground. Note, however, that these restrictions do not apply to the highimpedance pins of an external circuit, whose timing has been specifically designed to avoid output collision. 2. Absolute maximum ratings are rated values, beyond which physical damage may be caused to the product; if the rated value of any of the parameters in the above table is exceeded even momentarily, the quality of the product may deteriorate. Always use the product within its rated values, therefore. For IC products, normal operation and quality are guaranteed only when the ratings and conditions described under the DC and AC characteristics are satisfied.


Description

The mPD70501 (V831) is a 32-bit RISC microprocessor for embedded control applications, with a high-performance 32-bit V830TM processor core and many peripheral functions such as a DRAM/ROM controller, 4-channel DMA controller, real-time pulse unit, serial interface, and interrupt controller.

In addition to high interrupt response speed and optimized pipeline structure, the V831 offers sum-of-products operation instructions, concatenated shift instructions, and high-speed branch instructions to realize multimedia functions, and therefore, mPD70501 can provide high performance in multimedia systems such as internet/intra-net systems, car navigation systems, high-performance televisions, and color FAXes.

Detailed explanations of the functions, etc. mPD70501 are given in the following user's manuals. Be sure to read the manuals before designing your systems.
