XP131A1617SR

Features: Low on-state resistance : Rds (on) = 0.014 ( Vgs = 4.5V ) Rds (on) = 0.019 ( Vgs = 2.5V )Ultra high-speed switchingOperational Voltage : 2.5VHigh density mounting : SOP - 8Application􀀁 Notebook PCs􀀁 Cellular and portable phones􀀁 On - board power suppliesИ...

product image

XP131A1617SR Picture
See larger image
SeekIC No. : 004548970 Detail

XP131A1617SR: Features: Low on-state resistance : Rds (on) = 0.014 ( Vgs = 4.5V ) Rds (on) = 0.019 ( Vgs = 2.5V )Ultra high-speed switchingOperational Voltage : 2.5VHigh density mounting : SOP - 8Application ...

XP131A1617SR Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
XP131A1617SR
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

Low on-state resistance : Rds (on) = 0.014 ( Vgs = 4.5V )
                                           Rds (on) = 0.019 ( Vgs = 2.5V )
Ultra high-speed switching
Operational Voltage : 2.5V
High density mounting : SOP - 8


Application

􀀁 Notebook PCs
􀀁 Cellular and portable phones
􀀁 On - board power supplies
􀀁 Li - ion battery systems

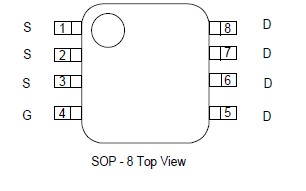

Pinout

Connection Diagram


Specifications

PARAMETER

SYMBOL

RATINGS

UNITS

Drain-Source Voltage

Vdss

20

V

Gate-Source Voltage

Vgss

±12

V

Drain Current (DC)

Id

10

A

Drain Current (Pulse)

Idp

40

A

Reverse Drain Current

Idr

10

A

Continuous Channel
Power Dissipation (note)

Pd

2.5

W

Channel Temperature

Tch

150

Storage Temperature

Tstg

-55~150




Description

The XP131A1617SR is a N-Channel Power MOS FET with low on-state resistance and ultra high-speed switching characteristics.

Because high-speed switching is possible, the XP131A1617SR can be efficiently set thereby saving energy.

The small SOP-8 package of XP131A1617SR makes high density mounting possible.
