W83L517D

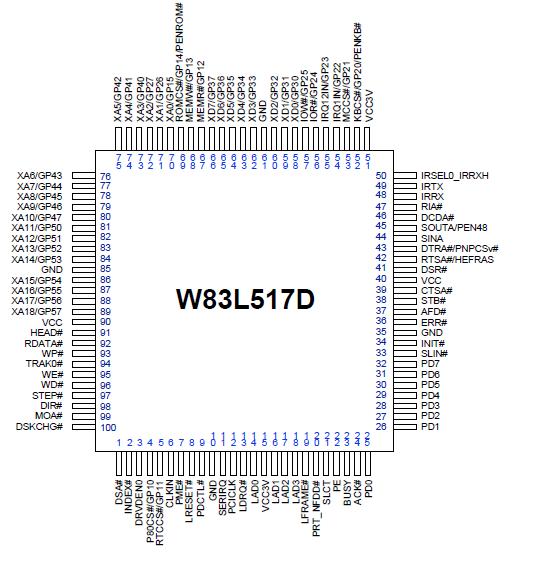

The W83L517D is evolving product from Winbond's most popular I/O family. They feature a whole new interface, namely LPC (Low Pin Count) interface, which will be supported in the new generation chipset. This interface as its name suggests is to provide an economical implementation of I/O's interface with lower pin count and still maintains equivalent performance as its ISA interface counterpart. Approximately 40 pin counts are saved in LPC I/O comparing to ISA implementation. With this additional freedom, we can implement more devices on a single chip as demonstrated in W83L517D's integration of Flash ROM Interface. It is fully transparent in terms of software which means no BIOS or device driver update is needed except chip-specific configuration.

The disk drive adapter functions of W83L517D include a floppy disk drive controller compatible with the industry standard 82077/ 765, data separator, write pre-compensation circuit, decode logic, data rate selection, clock generator, drive interface control logic, and interrupt and DMA logic. The wide range of functions integrated onto the W83L517D greatly reduces the number of components required for interfacing with floppy disk drives. The W83L517D supports four 360K, 720K, 1.2M, 1.44M, or 2.88M disk drives and data transfer rates of 250 Kb/s, 300 Kb/s, 500 Kb/s,1 Mb/s, and 2 Mb/s.

The W83L517D provides one high-speed serial communication ports (UARTs), one of which supports serial Infrared communication. The UART includes a 16-byte send/receive FIFO, a programmable baud rate generator, complete modem control capability, and a processor interrupt system. The UART provides legacy speed with baud rate up to 115.2k bps and also advanced speed with baud rates of 230k, 460k, or 921k bps which support higher speed modems. In addition, the W83L517D provides IR functions: IrDA 1.0 (SIR for 1.152K bps) and IrDA 1.1 (MIR for 1.152M bps or FIR for 4M bps), TV remote IR, (Consumer IR, supporting NEC, RC-5, extended RC-5, and RECS-80 protocols).
The W83L517D supports one PC-compatible printer port (SPP), Bi-directional Printer port (BPP) and also Enhanced Parallel Port (EPP) and Extended Capabilities Port (ECP). Through the printer port interface pins, also available are: Extension FDD Mode and Extension 2FDD Mode allowing one or two external floppy disk drives to be connected.
The configuration registers support mode selection, function enable/disable, and power down function selection. Furthermore, the configurable PnP features are compatible with the plug-and-play feature demand of Windows 95/98TM, which makes system resource allocation more efficient than ever.
T
he W83L517D provides a set of flexible I/O control functions to the system designer through a set of General Purpose I/O ports. These GPIO ports may serve as simple I/O or may be individually configured to provide a predefined alternate function. General Purpose Port 1 is designed to be functional even in power down mode (VCC is off).

The W83L517D is made to fully comply with Microsoft^® PC98 and PC99 Hardware Design Guide, and meet the requirements of ACPI.

The W83L517D provides two important interfaces -- "Flash ROM interface and ISA keyboard controller interface". The Flash ROM interface can support up to 4M legacy flash ROM. The ISA KBC interface can supports legacy KBC such as Mitsubishi H8 and Intel 8xC51
