W83L197R-16

Features: · Supports Pentium™ II CPUs· 4 sets of CPU frequencies selection· 2 CPU clocks (one free running CPU clock)· 6 PCI synchronous clocks(one free running PCI clock)· Optional single or mixed supply: (Vdd3 = VddC= 3.3V±5%) or (VddC = 2.5V±5%)· Skew form CPU to PCI clock 1.5 to 4.0 ns, ...

product image

W83L197R-16 Picture
See larger image
SeekIC No. : 004545219 Detail

W83L197R-16: Features: · Supports Pentium™ II CPUs· 4 sets of CPU frequencies selection· 2 CPU clocks (one free running CPU clock)· 6 PCI synchronous clocks(one free running PCI clock)· Optional single or ...

W83L197R-16 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
W83L197R-16
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/20

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

·  Supports Pentium™ II CPUs
·  4 sets of CPU frequencies selection
·  2 CPU clocks (one free running CPU clock)
·  6 PCI synchronous clocks(one free running PCI clock)
·  Optional single or mixed supply: (Vdd3 = VddC= 3.3V±5%) or (VddC = 2.5V±5%)
·  Skew form CPU to PCI clock 1.5 to 4.0 ns, CPU leads.
·  CPU clock jitter less than 200ps
·  PCI_F,PCI1:6 clock skew less than 500ps
·  ··0.5% or ··0.75% center type spread spectrum function to reduce EMI
·  Programmable registers to enable/stop each output and select modes (mode as Tri-state or Normal )
·  48 MHz for USB
·  28-pin SOP package (209mil)


Pinout

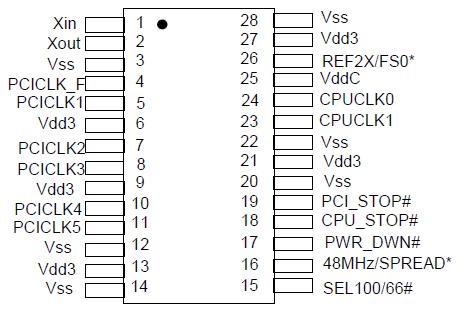

Connection Diagram


Specifications

Symbol

PARAMETER
RATING
Vdd , VIN
 Voltage on any pin with respect to GND
-0.5V to +7.0V
TSTG
 Storage Temperature
-65° C to +150° C
TB
 Ambient Temperature
-55° C to +125° C

TA

Operating Temperature

0°C to + 70°C




Description

The W83L197R-16 is a Clock Synthesizer which provides all clocks required for high-speed RISC or CISC microprocessor. Four different frequency of CPU, and PCI clocks are externally selectable with smooth transitions. The 0.5% or 0.75% center type spread spectrum can be selected to reduce EMI.

The W83L197R-16 accepts a 14.318 MHz reference crystal as its input and runs on a 3.3V supply. High drive PCI CLOCK outputs typically provide greater than 1 V /ns slew rate into 30 pF loads. CPU CLOCK outputs typically provide better than 1 V /ns slew rate into 20 pF loads as maintaining 50·· 5% duty cycle. The fixed frequency outputs as REF, 48 MHz provide better than 0.5V /ns slew rate.
