W742S81A

Features: • Operating voltage: 2.4V 5.5V• Dual-clock operation or single-clock operation (By option)• Main-oscillator − Connect to 3.58MHz crystal or 400KHz that can be selected by option code − Crystal or RC oscillator can be selected by code option• Sub-oscil...

product image

W742S81A Picture
See larger image
SeekIC No. : 004544953 Detail

W742S81A: Features: • Operating voltage: 2.4V 5.5V• Dual-clock operation or single-clock operation (By option)• Main-oscillator − Connect to 3.58MHz crystal or 400KHz that can be sele...

W742S81A Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
W742S81A
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Operating voltage: 2.4V 5.5V
• Dual-clock operation or single-clock operation (By option)
• Main-oscillator
   − Connect to 3.58MHz crystal or 400KHz that can be selected by option code
   − Crystal or RC oscillator can be selected by code option
• Sub-oscillator
   − Connect to 32768 Hz crystal only
• Memory
   − 16384 x 16 bits program electrical erasable EPROM (including 64K x 4 bit look-up table)
   − 2048 x 4 bits data RAM (including 16 nibbles x 16 pages working registers)
   − 40 x 4 LCD data RAM
• 24 input/output pins
   − Port for input only: 1 ports/4 pins(RC)
   − Input/output ports: 3 ports/12 pins(RA, RB & RD)
   − High sink current output port for LED driving: 1 port /4 pins(RE)
   − Port for output only: 1 port/ 4 pins(RF)
• Power-down mode
   − Hold function: no operation ( main-oscillator and sub-oscillator still operate)
   − Stop function: no operation ( main-oscillator and sub-oscillator are stopped)
   − Dual-clock slow operation mode: system is operated by the sub-oscillator (FOSC=Fs and Fm is stopped)
• Five types of interrupts
   − Four internal interrupts (Divider0, Divider1, Timer 0, Timer 1)
   − One external interrupts (RC Port)


Pinout

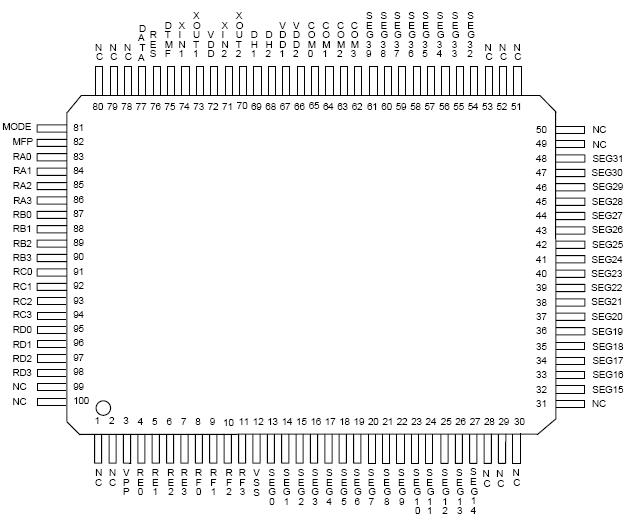

Connection Diagram


Specifications

PARAMETER RATING UNIT
Supply Voltage to Ground Potential -0.3 to +7.0 V
Applied Input/Output Voltage -0.3 to +7.0 V
Power Dissipation 120 mW
Ambient Operating Temperature 0 to +70 °C
Storage Temperature -55 to +150 °C



Description

The W742S81A is a high-performance 4-bit microcontroller (C) that provides an LCD driver. The device contains a 4-bit ALU, two 8-bit timers, two dividers (for two oscillators) in dual-clock operation, a 40 * 4 LCD driver, six 4-bit I/O ports (including 1 output port for LED driving), and one channel DTMF generator. There are also five interrupt sources and 16-levels subroutine nesting for interrupt applications. The W742S81A operates on very low current and has two power reduction modes, that is the dual-clock slow operation and STOP mode, which help to minimize power dissipation.
