W742C813

Features: ` Operating voltage - 2.4V 5.5V for mask type - 2.4V - 4.8V for electrical erasable EPROM type` Dual -clock operation` Main oscillator - 3.58 MHz or 400 KHz can be selected by code option - Crystal or RC oscillator can be selected by code option` Sub -oscillator - Connect to 32.768 KHz...

product image

W742C813 Picture
See larger image
SeekIC No. : 004544942 Detail

W742C813: Features: ` Operating voltage - 2.4V 5.5V for mask type - 2.4V - 4.8V for electrical erasable EPROM type` Dual -clock operation` Main oscillator - 3.58 MHz or 400 KHz can be selected by code optio...

W742C813 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
W742C813
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` Operating voltage
    - 2.4V 5.5V for mask type
    - 2.4V     - 4.8V for electrical erasable EPROM type
` Dual    -clock operation
` Main oscillator
    - 3.58 MHz or 400 KHz can be selected by code option
    - Crystal or RC oscillator can be selected by code option
` Sub    -oscillator
    - Connect to 32.768 KHz crystal only
` Memory
    - 32768(32K) x 16 bit program ROM (including 64K x 4 bit look    -up table)
    - 5120(5K) x 4 bit data RAM (including 16 nibbles x 16 pages working registers)
    - 40 x 16 LCD data RAM
` 40 input/output pins
    - Port for input only: 3 ports/12 pins
    - Input/output ports: 3 ports/12 pins
    - High sink current output port for LED driving: 2 port /8 pins
    - DC output port: 2 ports/ 8 pins (selected by code option)
` Power    -down mode
    - Hold mode: no operation (main oscillator and sub    -oscillator still operate)
    - Stop mode: no operation (main oscillator and sub    -oscillator are stopped)
    - Slow mode: main oscillator is stopped, system is operated by the sub    -oscillator (32.768 KHz)
` Eleven interrupt sources
    - Four internal interrupts (Divider0, Divider1, Timer 0, Timer 1)
    - Seven external interrupts (RC.0    -3, P1.2 (INT0 ), Serial Port, P1.3 (INT1))
` LCD driver output
    - 40 segments x 16 commons
    - 1/8 or 1/16 duty (selected by code option) 1/5 bias driving mode
    - Clock source should be the sub    -oscillator clock in the dual    -clock operation mode
    - 8 level software LCD contrast adjusting
    - LCD operating voltage source could come from VDD or VLCD1 pin input
` MFP output pin
    - Output is software controlled to generate modulating or nonmodulating frequency
    - Works as frequency output specified by Timer 1
    - Key tone generator
` DTMF output pin
    - Output is one channel Dual Tone Multi    -Frequency signal for dialling
` 8    -bit Serial I/O Interface
    - 8    -bit transmit/receive mode by internal or external clock source
` Two built    -in 14    -bit frequency dividers
    - Divider0: the clock source is the main oscillator (FOSC)
    - Divider1: the clock source is the sub    -oscillator (Fs)
` Two built    -in 8    -bit programmable countdown timers
    - Timer 0: one of two internal clock frequencies (FOSC/4 or FOSC/1024) can be selected
    - Timer 1: with auto    -reload function and one of two internal clock frequencies (FOSC or FOSC/64 or
      Fs) can be selected (signal output through MFP pin)
` Built    -in 18/15    -bit watchdog timer selectable for system reset, enable/disable by code option
` Powerful instruction set: 1XX instructions
` 16    -level stack buffer
` Packaged in 100    -pin QFP


Pinout

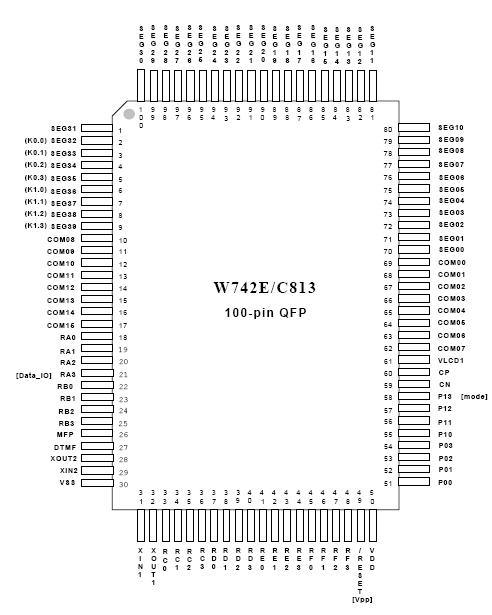

Connection Diagram


Specifications

PARAMETER RATING UNIT
Supply Voltage to Ground Potential -0.3 to +7.0 V
Applied Input/Output Voltage -0.3 to +7.0 V
Power Dissipation 120 mW
Ambient Operating Temperature 0 to +70 °C
Storage Temperature -55 to +150 °C



Description

The W742E/C813 (W742C813 is mask type, W742E813 is electrical erasable EPROM type) is a highperformance 4-bit microcontroller (mC) that built in 640-dot LCD driver. The device contains a 4-bit ALU, two 8-bit timers, two dividers in dual-clock operation, a 40 ´ 16 LCD driver, ten 4-bit I/O ports (including 2 output port for LED driving), multiple frequency output, and one channel DTMF generator. There are also eleven interrupt sources and 16-level stack buffer. The W742E/C813 operates on very low current and has three power reduction modes, hold mode, stop mode and slow mode, which help to minimize power dissipation.
