VT83C572

Features: * Universal Serial Bus Interface - USB specification v.1.0 compatible - Intel UHCI (Universal Host Controller Interface) v.1.1 register compatible - Legacy keyboard and PS2 mouse support - Root hub and two down stream function ports - Integrated physical layer transceivers - Normal and ...

product image

VT83C572 Picture
See larger image
SeekIC No. : 004543862 Detail

VT83C572: Features: * Universal Serial Bus Interface - USB specification v.1.0 compatible - Intel UHCI (Universal Host Controller Interface) v.1.1 register compatible - Legacy keyboard and PS2 mouse support ...

VT83C572 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
VT83C572
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/5/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

* Universal Serial Bus Interface
  - USB specification v.1.0 compatible
  - Intel UHCI (Universal Host Controller Interface) v.1.1 register compatible
  - Legacy keyboard and PS2 mouse support
  - Root hub and two down stream function ports
  - Integrated physical layer transceivers
  - Normal and low power operating mode
  - Operable in both USB-aware (Windows-95 and NT) and USB legacy BIOS support
  - Inter-operable with major USB peripherals
* PCI Interface
  - PCI specification v.2.1 compliant
  - Supports advanced PCI commands
  - Multi-level data FIFOs with full scatter and gather capabilities
* 0.5um high speed low power CMOS process
* Single chip 100-pin PQFP device

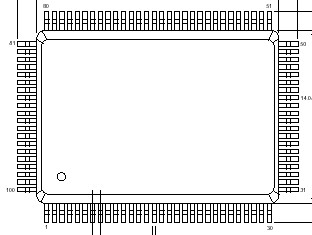

Pinout

Connection Diagram


Specifications

Parameter
Min
Max
Unit
Ambient operating temperature
Storage temperature
Input voltage
Output voltage (VDD = 5V)
Output voltage (VDD = 3.1 - 3.6V)
0
-55
-0.5
-0.5
-0.5
70
125
5.5
5.5
VDD + 0.5


Voltage
Voltage
Voltage
