Features:

·12-BIT, 12MHz A/D CONVERTER
·GUARANTEED NO MISSING CODES
·3-CHANNEL, 4MHz COLOR SCAN MODE:
   Correlated Double Samplers
   8-Bit Offset Adjustment DACs
   0dB to +13dB PGAs
·A/D INPUT MONITOR
·INTERNAL VOLTAGE REFERENCE
·SINGLE +5V SUPPLY
·3V OR 5V DIGITAL OUTPUT
·LOW POWER: 500mW typ (CCD Mode)


Application

·CCD AND CIS COLOR SCANNERS
·FAX AND MULTI-FUNCTION MACHINES
·INDUSTRIAL /MEDICAL IMAGING SYSTEMS


Pinout

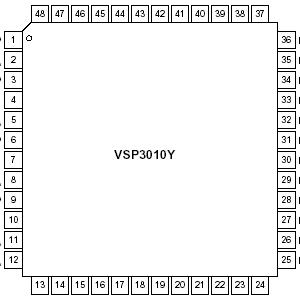

Connection Diagram


Specifications

Supply Voltage, (VDDA, VDDD,VDRV) .................. .. ................................... +6V
Analog Input ................................................... .... (0.3V) to (+VDDA + 0.3V)
Logic Input ........................................................ . (0.3V) to (+VDDD + 0.3V)
Operating Temperature ..................................................... ... 0°C to +85°C
Case Temperature ...................................................... ............. ...... +100°C
Junction Temperature ................................................... ......... ........ +150°C
Storage Temperature ..................................................... ................ +150°C


Description

The VSP3010 is a complete, three-channel image signal processor for Charge Coupled Device (CCD) or Contact Image Sensor (CIS) systems. Each channel
contains sensor signal sampling, Black Level adjustment and a programmable gain amplifier. The three inputs are multiplexed into a high speed, 12-bit analog-to-digital converter. Input circuitry can be configured, by digital command, for CCD or CIS sensors. A Black Clamp and Correlated Double Samplers (CDS) are provided for CCD sensors. For CIS devices, the VSP3010 provides a single-ended sampler and a reference input. The VSP3010 is available in a 48-lead LQFP package and operates from 0°C to +85°C with a single +5V supply.
