VSP3000

Features: 12-BIT, 6MHZ A/D CONVERTER GUARANTEED NO MISSING CODES 3 CHANNEL, 2MHz COLOR SCAN MODE: Correlated Double Samplers 8-Bit Offset Adjustment DACs 0dB to +13dB PGAs A/D INPUT MONITOR INTERNAL VOLTAGE REFERENCE SINGLE +5V SUPPLY 3V OR 5V DIGITAL OUTPUT LOW POWER: 475mW typ (3-CH Mode)Applic...

product image

VSP3000 Picture
See larger image
SeekIC No. : 004543725 Detail

VSP3000: Features: 12-BIT, 6MHZ A/D CONVERTER GUARANTEED NO MISSING CODES 3 CHANNEL, 2MHz COLOR SCAN MODE: Correlated Double Samplers 8-Bit Offset Adjustment DACs 0dB to +13dB PGAs A/D INPUT MONITOR INTERNA...

VSP3000 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
VSP3000
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/20

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

12-BIT, 6MHZ A/D CONVERTER
GUARANTEED NO MISSING CODES
3 CHANNEL, 2MHz COLOR SCAN MODE: Correlated Double Samplers 8-Bit Offset Adjustment DACs 0dB to +13dB PGAs
A/D INPUT MONITOR
INTERNAL VOLTAGE REFERENCE
SINGLE +5V SUPPLY
3V OR 5V DIGITAL OUTPUT
LOW POWER: 475mW typ (3-CH Mode)




Application

 CCD AND CIS COLOR SCANNERS
 FAX AND MULTI-FUNCTION MACHINES
 INDUSTRIAL /MEDICAL IMAGING SYSTEMS


Pinout

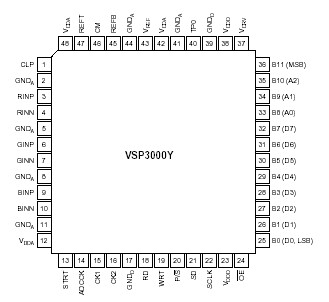

Connection Diagram


Specifications

VDDA, VDDD,VDRV ................................................................... +6V
Analog Input ....................................... (0.3V) to (+VDDA + 0.3V)
Logic Input ......................................... (0.3V) to (+VDDD + 0.3V)
Case Temperature .......................................................... +100°C
Junction Temperature ..................................................... +150°C
Storage Temperature ..................................................... +150°C


Description

The VSP3000 is a complete, three-channel image signal processor for Charge Coupled Device (CCD)or Contact Image Sensor (CIS) systems. Each channel contains sensor signal sampling, Black Level adjustment and a programmable gain amplifier. The three inputs are multiplexed into a high speed, 12-bit analog-to-digital converter. Input circuitry can be configured, by digital command, for CCD or CIS sensors. A Black Clamp and Correlated Double Samplers (CDS) are provided for CCD sensors. For CIS devices, the VSP3000 provides a single-ended sampler and a reference input. The VSP3000 is available in a 48-lead LQFP package and operates from 0°C to +85°C with a single +5V supply.
