Product Details

Description



Features:

• Non-Isolated
• Under-voltage Lockout (UVLO)
• High Efficiency
• Over Temperature Protection
• High Power Density
• OCP/SCP
• Excellent Thermal Performance
• Wide Input
• Low Cost
• Wide Trim
• Flexible Output Voltage Sequencing (option)
• Remote On/Off
• Active Low/High (option)
• Able to Sink & Source Current
• Remote Sense
• Industrial Temperature Range

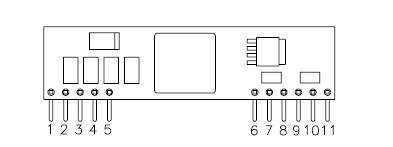

Pinout

Connection Diagram


Specifications

Parameter Min Typ Max Notes
Input Voltage (continuous) -0.3V - 15V
Output Enable Terminal Voltage -0.3V - 15V
Sequencing Voltage 1 -0.3V - Vin
Ambient Temperature -40 - 85
Storage Temperature -55 - 125
Notes: All specifications are typical at 25 °C unless otherwise stated.
1. V7BC-16E2Ax series of modules include a sequencing feature that enables users to implement various types of output voltage sequencing in their applications. This is accomplished via an additional sequencing pin. When not using the sequencing feature, either, tie the SEQ pin to Vin or leave it unconnected.


Description

The Bel V7BC-16E2Ax is part of the non-isolated dc/dc converter series. The modules use a SIP package. These converters are available in a range of output voltages from 0.75 V to 3.63 V over a wide range of input voltage (Vin = 4.5 V-14 V). The Bel V7BC-16E2Ax has a sequencing feature that enables designers to implement various types of output voltage sequencing when powering. The efficiency is typically 93.5% at 3.3 V output and 5 V input at full load.
