V7BC-16F2Ax

Features: • Non-Isolated • Under-voltage Lockout (UVLO)• High Efficiency • Over Temperature Protection• High Power Density • Remote Sense• OCP/SCP • Wide Input• Fixed Frequency (300kHz) • Wide Trim• Flexible Output Voltage Sequencin...

product image

V7BC-16F2Ax Picture
See larger image
SeekIC No. : 004540329 Detail

V7BC-16F2Ax: Features: • Non-Isolated • Under-voltage Lockout (UVLO)• High Efficiency • Over Temperature Protection• High Power Density • Remote Sense• OCP/SCP • W...

V7BC-16F2Ax Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
V7BC-16F2Ax
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Non-Isolated
• Under-voltage Lockout (UVLO)
• High Efficiency
• Over Temperature Protection
• High Power Density
• Remote Sense
• OCP/SCP
• Wide Input
• Fixed Frequency (300kHz)
• Wide Trim
• Flexible Output Voltage Sequencing
• Converter can sink and source Current
• Remote On/Off
• Active Low/High (option)

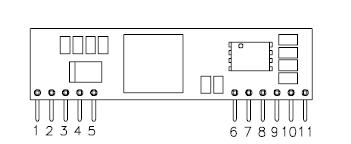

Pinout

Connection Diagram


Specifications

Parameter Min Typ Max Notes
Input Voltage (continuous) -0.3V - 5.8V
Output Enable Terminal Voltage -0.3V - 5.8V
Sequencing Voltage 1 -0.3V - Vin
Ambient Temperature -40 - 85
Storage Temperature -55 - 125
Notes: All specifications are typical at 25°C unless otherwise stated.
1. V7BC-16F2Ax series of modules include a sequencing feature that enables users to implement various types of output voltage sequencing in their applications. This is accomplished via an additional sequencing pin. When the sequencing feature is not used, tie the SEQ pin to Vin.


Description

The Bel V7BC-16F2Ax modules are a series of non-isolated DC/DC converters that can deliver up to 16A of output current with full load efficiency of 94% at 3.3V output. These modules provide precisely regulated voltage programmable via external resistor from 0.75Vdc to 3.63Vdc over a wide range of input voltage(2.4V-5.5V). These modules have a sequencing feature that enables designers to implement various types of output voltage sequencing when powering multiple voltages on a board. Their open-frame construction and small footprint enable designers to develop cost and space-efficient solutions. Standard features include remote ON/OFF,programmable output voltage and over current protection
