Product Details

Description

Features:

• Non-Isolated
• Wide Input
• High Efficiency
• Wide Trim
• High Power Density
• OCP/SCP
• Excellent Thermal Performance
• Remote On/Off
• Low Cost
• Active Low/High (option)
• Flexible Output Voltage Sequencing (option)
• Over Temperature Protection
• Under-voltage Lockout (UVLO)
• Remote Sense
• Industrial Temperature Range

Pinout

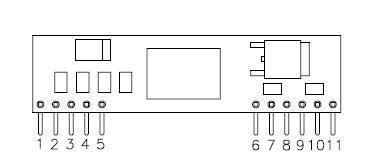

Connection Diagram

Specifications

Parameter	Min	Typ	Max	Notes
Input Voltage (continuous)	-0.3V	-	15V
Output Enable Terminal Voltage	-0.3V	-	15V
Sequencing Voltage ¹	-0.3V	-	Vin
Ambient Temperature	-40	-	85
Storage Temperature	-55	-	125

Notes: All specifications are typical at 25 °C unless otherwise stated.
1. V7BC-10E2Ax series of modules include a sequencing feature that enables users to implement various types of output voltage sequencing in their applications. This is accomplished via an additional sequencing pin. When not using the sequencing feature, either tie the SEQ pin to Vin or leave it unconnected.

Description

The Bel V7BC-10E2Ax is part of the non-isolate dc/dc power converter series. The modules use a SIP package. These converters are available in a range of output voltages from 0.75 V to 3.63 V over a wide range of input voltage (Vin = 4.5 V-14 V). The Bel V7BC-10E2Ax has a sequencing feature that enables designers to implement various types of output voltage sequencing when powering. The efficiency is typically 94.3% at 3.3V output at 5.0V input at full load.
