Product Details

Description



Features:

 4 banks x 4Mbit x 4 organization
High speed data transfer rates with system frequency up to 166 MHz
Data Mask for Write Control (DM)
Four Banks controlled by BA0 & BA1
 Programmable CAS Latency: 2, 2.5, 3
Programmable Wrap Sequence: Sequential or Interleave
Programmable Burst Length:
   2, 4, 8 for Sequential Type
   2, 4, 8 for Interleave Type
Automatic and Controlled Precharge Command
 Suspend Mode and Power Down Mode
Auto Refresh and Self Refresh
 Refresh Interval: 4096 cycles/64 ms
Available in 66-pin 400 mil TSOP-II
 SSTL-2 Compatible I/Os
 Double Data Rate (DDR)
Bidirectional Data Strobe (DQs) for input and output data, active on both edges
 On-Chip DLL aligns DQ and DQs transitions with CLK transitions
Differential clock inputs CLK and CLK
 Power supply 2.5V ± 0.2V


Pinout

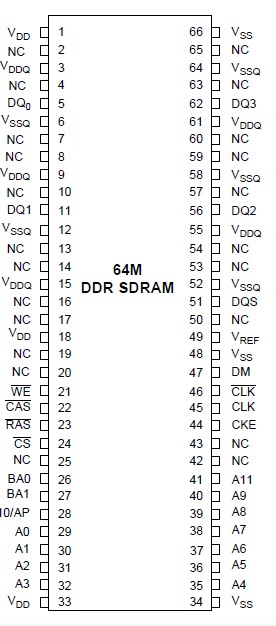

Connection Diagram


Specifications

Operating temperature range............................... 0 to 70°C
Storage temperature range .............................-55 to 150°C
Input/output voltage............................. -0.3 to (VCC+0.3) V
Power supply voltage ...................................... -0.3 to 4.6 V
Power dissipation ........................................................1.6 W
Data out current (short circuit)....................................50 mA


Description

The V58C265404S is a four bank DDR DRAM organized as 4 banks x 4Mbit x 4. The V58C265404S achieves high speed data transfer rates by employing a chip architecture that prefetches multiple bits and then synchronizes the output data to a system clock

All of the control, address, circuits are synchronized with the positive edge of an externally supplied clock. I/O transactions are possible on both edges of DQS.

Operating the four memory banks in an interleaved fashion allows random access operation to occur at a higher rate than is possible with standard DRAMs. A sequential and gapless data rate is possible depending on burst length, CAS latency and speed grade of the device.
