V58C2128(804/404/164)S

Features: High speed data transfer rates with system frequency up to 166 MHz Data Mask for Write Control Four Banks controlled by BA0 & BA1 Programmable CAS Latency: 2, 2.5 Programmable Wrap Sequence: Sequential or Interleave Programmable Burst Length: 2, 4, 8 for Sequential Type 2, 4, 8 for ...

product image

V58C2128(804/404/164)S Picture
See larger image
SeekIC No. : 004540073 Detail

V58C2128(804/404/164)S: Features: High speed data transfer rates with system frequency up to 166 MHz Data Mask for Write Control Four Banks controlled by BA0 & BA1 Programmable CAS Latency: 2, 2.5 Programmable Wrap Se...

V58C2128(804/404/164)S Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
V58C2128(804/404/164)S
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

High speed data transfer rates with system frequency up to 166 MHz
Data Mask for Write Control
Four Banks controlled by BA0 & BA1
Programmable CAS Latency: 2, 2.5
Programmable Wrap Sequence: Sequential or Interleave
Programmable Burst Length:
    2, 4, 8 for Sequential Type
    2, 4, 8 for Interleave Type
Automatic and Controlled Precharge Command
Power Down Mode
Auto Refresh and Self Refresh
Refresh Interval: 4096 cycles/64 ms
Available in 66-pin 400 mil TSOP
SSTL-2 Compatible I/Os
Double Data Rate (DDR)
Bidirectional Data Strobe (DQS) for input and output data, active on both edges
On-Chip DLL aligns DQ and DQs transitions with CK transitions
Differential clock inputs CK and CK
Power Supply 2.5V ± 0.2V
QFC options for FET control. x4 parts.

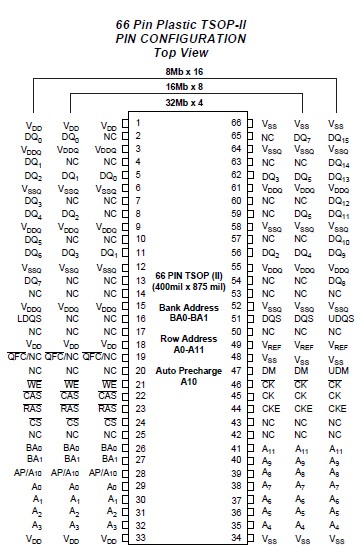

Pinout

Connection Diagram


Specifications

Operating temperature range ...................................................................0 to 70 °C
Storage temperature range .................................................................-55 to 150 °C
VDDSupply Voltage Relative to VSS.........................................................-1V to +3.6V
VDDQ Supply Voltage Relative to VSS.....................................................-1V to +3.6V
VREF and Inputs Voltage Relative to VSS................................................-1V to +3.6V
I/O Pins Voltage Relative to VSS................................................. -0.5V to VDDQ+0.5V
Power dissipation ............................................................................................ 1.6 W
Data out current (short circuit) ........................................................................ 50 mA


Description

The V58C2128(804/404/164)S is a four bank DDR DRAM organized as 4 banks x 4Mbit x 8 (804), 4 banks x 2Mbit x 16 (404), or 4 banks x 8Mbit x 4 (164). The V58C2128(804/404/164)S achieves high speed data transfer rates by employing a chip architecture that prefetches multiple bits and then synchronizes the output data to a system clock.

All of the control, address, circuits are synchronized with the positive edge of an externally supplied clock. I/O transactions are ocurring on both edges of DQS.

Operating the four memory banks in an interleaved fashion allows random access operation to occur at a higher rate than is possible with standard DRAMs. A sequential and gapless data rate is possible depending on burst length, CAS latency and speed grade of the device.
