Product Details

Description



Features:

4 banks x 1Mbit x 16 organization
High speed data transfer rates with system
frequency up to 250 MHz
Data Mask for Write Control (DM)
Four Banks controlled by BA0 & BA1
Programmable CAS Latency: 2, 2.5, 3
Programmable Wrap Sequence: Sequential or Interleave
Programmable Burst Length:
  2, 4, 8 for Sequential Type
  2, 4, 8 for Interleave Type
Automatic and Controlled Precharge Command
Suspend Mode and Power Down Mode
Auto Refresh and Self Refresh
Refresh Interval: 4096 cycles/64 ms
Available in 66-pin 400 mil TSOP-II
SSTL-2 Compatible I/Os
Double Data Rate (DDR)
Bidirectional Data Strobe (DQs) for input and
output data, active on both edges
On-Chip DLL aligns DQ and DQs transitions with
CLK transitions
Differential clock inputs CLK and CLK
Power supply 2.5V ± 0.2V


Pinout

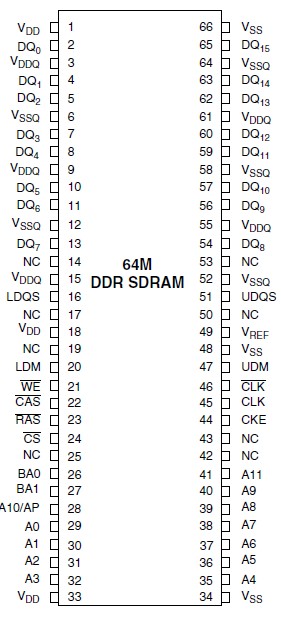

Connection Diagram


Specifications

Operating temperature range......................................... 0 to 70 °C
Storage temperature range....................... ................-55 to 150 °C
Input/output voltage......................................... -0.3 to (VCC+0.3) V
Power supply voltage .................................................. -0.3 to 4.6 V
Power dissipation ....................................................................1.6 W
Data out current (short circuit)................................................50 mA


Description

The V58C265164S is a four bank DDR DRAM organized as 4 banks x 1Mbit x 16. The V58C265164S achieves high speed data transfer rates by employing a chip architecture that prefetches multiple bits and then synchronizes the output data to a system clock

All of the control, address, circuits are synchronized with the positive edge of an externally supplied clock. I/O transactions are possible on both edges of DQS.

Operating the four memory banks in an interleaved fashion allows random access operation to occur at a higher rate than is possible with standard DRAMs. A sequential and gapless data rate is possible depending on burst length, CAS latency and speed grade of the device.
