Position: Home  > All Categories> Integrated Circuits (ICs) > V53C518165A60

V53C518165A60

Features: 1MB x 16-bit organization EDO Page Mode for a sustained data rate of 50 MHzRAS access time: 50, 60 ns DualCAS Inputs Low power dissipation Read-Modify-Write, RAS-Only Refresh,CAS-Before-RAS Refresh • Refresh Interval: 1024 cycles/16 ms Available in 42-pin 400 mil SOJ and 44/50-pin ...

product image

V53C518165A60 Picture
See larger image
SeekIC No. : 004539938 Detail

V53C518165A60: Features: 1MB x 16-bit organization EDO Page Mode for a sustained data rate of 50 MHzRAS access time: 50, 60 ns DualCAS Inputs Low power dissipation Read-Modify-Write, RAS-Only Refresh,CAS-Before-RA...

V53C518165A60 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
V53C518165A60
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/30

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

 1MB x 16-bit organization
EDO Page Mode for a sustained data rate of 50 MHz
 RAS access time: 50, 60 ns
Dual CAS Inputs
Low power dissipation
Read-Modify-Write, RAS-Only Refresh,CAS-Before-RAS Refresh
   • Refresh Interval: 1024 cycles/16 ms
Available in 42-pin 400 mil SOJ and 44/50-pin 400 mil TSOP-II Packages
Single 5V±10% Power Supply
TTL Interface
Optional Self Refresh (V53C518165AS)
   • Refresh Interval: 1024 cycles/128 ms


Pinout

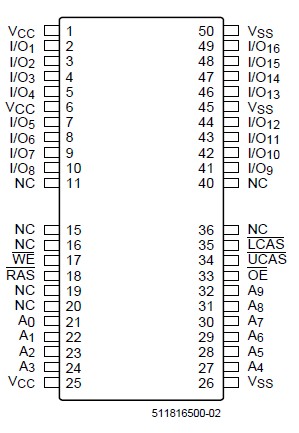

Connection Diagram


Specifications

Symbol

Parameter

Commercial

Extended

Units

VN

Power Supply Voltage

-1 to +7

-1 to +7

V

VDQ

Input/Output Voltage to

-0.5 to min (VCC+0.5, 7.0) -0.5

min (VCC+0.5, 7.0)

V

TBIAS

Temperature Under Bias

-10 to +125

-65 to +135

°C

TSTG

Storage Temperature

-55 to +125

-65 to +150

°C




Description

The V53C518165A60 is a 1048576 x 16 bit highperformance CMOS dynamic random access memory. The V53C518165A offers Page mode operation with Extended Data Output. The V53C518165A has symmetric address, 10-bit row and 10-bit column.

All inputs are TTL compatible. EDO Page Mode operation allows random access up to 1024 x 16 bits, within a page, with cycle times as short as 20ns.

These features make the V53C518165A60 ideally suited for a wide variety of high performance computer systems and peripheral applications.
