Features: · Complete MIL-STD-1553B Remote Terminal interface compliance· Dual-redundant data bus operation supported· Internal illegalization of selected mode code commands· External illegal command definition capability· Automatic DMA control and address generation· Operational status available v...
UT1553B: Features: · Complete MIL-STD-1553B Remote Terminal interface compliance· Dual-redundant data bus operation supported· Internal illegalization of selected mode code commands· External illegal command...
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
Features: Comprehensive MIL-STD-1553 dual-redundant Bus Controller (BC) and Remote Terminal (RT) ...
Features: `Complete MIL-STD-1553B Remote Terminalerface compliance`Dual-redundant data bus operati...
Features: · Complete MIL-STD-1553B remote terminal interface· 1K x 16 of on-chip static RAM for me...

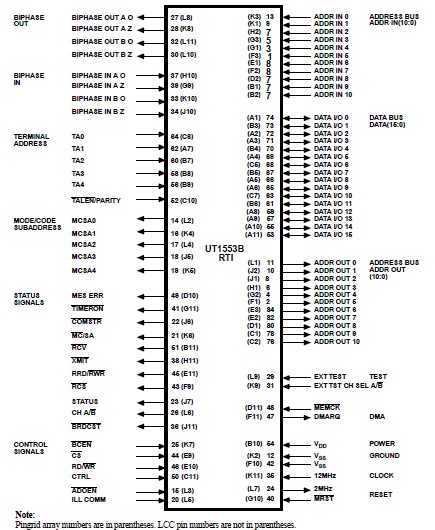

SYMBOL |
PARAMETER |
LIMITS |
UNIT |
VDD |
DC supply voltage |
-0.3 to +7.0 |
V |
VIO |
Voltage on any pin |
-0.3 to VDD+0.3 |
V |
II |
DC input current |
±10 |
mA |
TSTG |
Storage temperature |
-65 to +150 |
°C |
PD |
Maximum power dissipation |
300 |
mW |
TJ |
Maximum junction temperature |
+175 |
°C |
JC |
Thermal resistance, junction-to-case |
20 |
°C/W |
The RTI uses three internal registers of the UT1553B to allow the host to control the RTI operation and monitor its status. The host uses the following inputs Control (CTRL), Chip Select (CS), Read/Write (RD/WR), and ADDR IN (0) to read the 16-bit System Register or write to the 8-bit Control Register. The Control Register toggles bits in the MIL-STD-1553B status word, enables biphase inputs, selects terminal active flag, and puts the part in self-test. The System Register supplies operational status of the UT1553B RTI to the host. The Last Command Register saves the command word for a Transmit Last Command mode code, along with operational status from the System Register.
The 8-bit write-only Control Register manages the operation of the RTI of the UT1553B. Write to the Control Register by applying a logic zero to CS, CTRL, RD/WR, and ADDR IN (0); if ADDR IN (0) is a logic one a master reset occurs. Data is loaded into the Control Register via I/O pins DATA(7:0). Control Register writes must occur 50ns before the rising edge of COMSTR to latch data in the outgoing status word.
